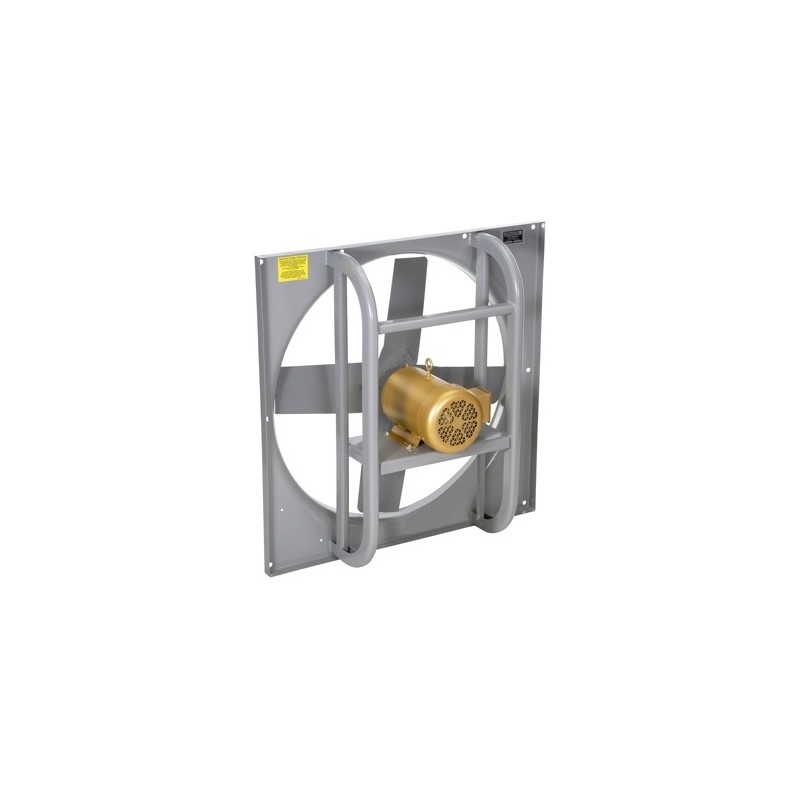

24" Propeller 230/460v 3-ph 30"sq 1-hp explosion proof exhaust fan

Reference H24VEX836-2

Brand Airmaster Fan Co.

Airmaster Fan Model H24VEX836-2
1-HP 230/460V 3-PH 1750-RPM Explosion Proof Motor
24" Spark Resistant Aluminum Propeller
7820-CFM @0" Static Pressure, 7690-CFM @1/8" Static Pressure
7450-CFM @1/4" Static Pressure
Perceived Pressure Sound 35.4/Sones @5'
30"x30"sq.x12"dee
Can Be Shipped UPS Ground
Weight 65/lbs

$2,768.00

Quantity

In stock: 4 Items

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description
Product Details

Description

1 Year Warranty
High Pressure Direct Drive
Industrial Duty Explosion Proof
Class I, Group D, Class II, Groups E, F & G
Do NOT Use Variable Speed Control On This Fan

Made In The USA

Note: Airmaster ships 3 days after receipt of order.

Certifications, Features & Specifications

Learn more about high pressure explosion proof fans certifications, features, specifications and more.

Product Details

Reference H24VEX836-2

In stock 4 Items

Specific References

UPC: 783429253508
