Power Switching Devices

Switching Devices

Power Switching Devices Apply or Interrupt Electric Power To A Controlled Device. Basic Types Of Switching Devices Are Electro-Mechanical Contactors (Relays) That Switch Electric Power Through Physical Contacts, or Solid State Relays, And SCR Contactors That Switch Power Electronically, And Mercury Relays (Contactors) That Switch Power By Changing The Mercury Level In A Tube Reservoir With A Plunger Activated By A Solenoid Coil.

Subcategories

There are 155 products.

Sort by:

Showing 1-12 of 155 item(s)

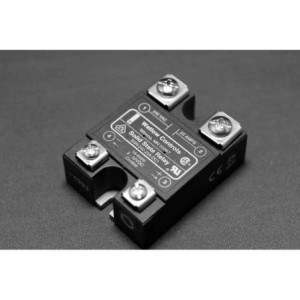

25A SPST N/O 240Vac Power 3~32Vdc Control

Reference: SSR-240-25A-DC1

Brand: Watlow Electric Mfg.

25A SPST N/O 240Vac Power 3~32Vdc Control

Zero cross fire Back to back SCR design Maximum I²T fusing is 260A²seconds Line voltage 24~240Vac Ambient operating temperature -40°F to +176°F Thermal resistance 1.05°F C/W Internal voltage snubber Includes thermal foil, washers, and screws for mounting to a heat sink Equal to Crydom D2425 and Potter & Brumfield SSRT-240D25

$64.80

Last items in stock

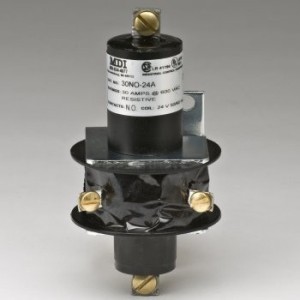

Reference: BF7046

Brand: Mercury Displacement Industries

30A 1P 24Vdc Mercury Contactor

Coil Rating 133mA 3.2Va 180-Ω Contacts Normally Open Rated 30A@600V Amperage Rating Based On Resistive Load Contact Make Time 50 Milliseconds Contact Break Time 80 Milliseconds Temperature Range -35°c To +85°c Dielectric Withstanding UpTo 2500Vac RMS Direct Replacement For Watlow HG30-6KD1-0000

$45.60

Last items in stock

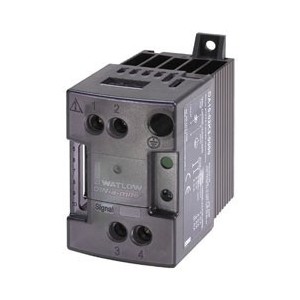

Reference: DA10-24C0-0000

Brand: Watlow Electric Mfg.

DA10-24C0-0000 Watlow Din-A-Mite A

Line Voltage 120~240Vac 1-Phase Control Voltage 4.5~32Vdc 8mA Maximum Control Current @4.5Vdc Din Rail Mount or Flat Panel Mounting Back to Back SCR Design Zero Cross Switching Up-To 25A@80°F (see table below)

$199.00

Last items in stock

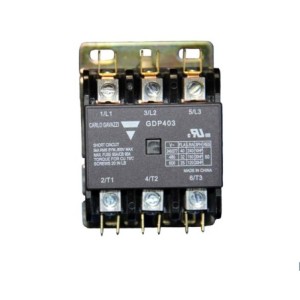

Reference: GDP403L120V

Brand: Carlo Gavazzi

40A 3P 120Vac Coil Defenite Purpose Contactor

Carlo Gavazzi Definite Purpose Contactor Without Enclosure Rated 40A Inductive Load ~ 50A Resistive Load 600Vac 3-Pole with 120Vac Class C Insulated Coil Dual Quick Connect Tabs For Line & Load Connections Main Frame Incorporates High Arc Resistant Plastic 3-3/4" X 2-3/4" X 3" Made In China

$31.75

In stock

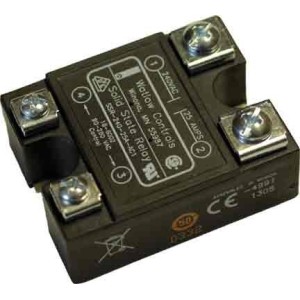

Reference: SSR-240-25A-AC1

Brand: Watlow Electric Mfg.

25A SPST N/O 240Vac Power 90~280Vac Control

Zero Cross Fire Back to Back SCR Design Hocky Puck Style Maximum I²T Fusing is 260A² Seconds Line Voltage 24~240Vac Ambient Operating Temperature -40°F ~ 176°F Thermal Resistance 1.05°F C/W Internal Voltage Snubber Equal to Crydom A2425 and Potter & Brumfield SSRT-240A25

$72.74

In stock

Reference: DA10-60C0-0000

Brand: Watlow Electric Mfg.

DA10-60C0-0000 Watlow Din-A-Mite A

Line Voltage 277~600Vac 1-Phase Control Voltage 4.5~32Vdc 8mA Maximum Control Current @4.5Vdc Din Rail Mount or Flat Panel Mounting Back to Back SCR Design Zero Cross Switching Up-To 25A@80°F (see table below)

$209.00

Last items in stock

Reference: BF2-7032

Brand: Mercury Displacement Industries

30A 2P 24Vdc Mercury Contactor

Coil Rating 1488Ma 4.5Va 131-Ω Contacts Normally Open Rated 30A@600V Amperage Rating Based On Resistive Load Contact Make Time 50 Milliseconds Contact Break Time 80 Milliseconds Temperature Range -35°c To +85°c Dielectric Withstanding UpTo 2500Vac RMS Direct Replacement For Watlow HG30-6KD2-0000

$81.26

Last items in stock

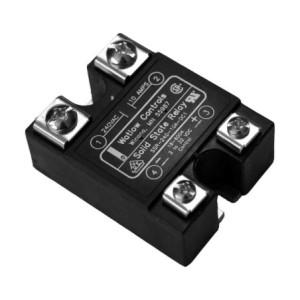

Reference: SSR-240-10A-DC1

Brand: Watlow Electric Mfg.

10A SPST N/O 240Vac Power 3~32Vdc Control

Zero cross fire Back to back SCR design Maximum I²T fusing is 60A²seconds Line voltage 24~240Vac Ambient operating temperature -40°F to +176°F Thermal resistance 1.48°F C/W Internal voltage snubber Includes thermal foil, washers, and screws for mounting to a heat sink Equal to Crydom D2410 and Potter & Brumfield SSRT-240D10

$56.87

Last items in stock

Reference: DA10-24F0-0000

Brand: Watlow Electric Mfg.

DA10-24F0-0000 Watlow Din-A-Mite A

Line Voltage 120~240Vac 1-Phase 4~20mA Proportional Control Din Rail Mount or Flat Panel Mounting Back to Back SCR Design Zero Cross Switching Up-To 25A@80°F (see table below)

$229.00

Last items in stock

Reference: BF3-7038

Brand: Mercury Displacement Industries

30A 3P 24Vdc Mercury Contactor

Coil Rating 329Ma 7.9Va 73-Ω Contacts Normally Open Rated 30A@600V Amperage Rating Based On Resistive Load Contact Make Time 50 Milliseconds Contact Break Time 80 Milliseconds Temperature Range -35°c To +85°c Dielectric Withstanding UpTo 2500Vac RMS Direct Replacement For Watlow HG30-6KD3-0000

$121.87

Last items in stock

Reference: SSR-240-10A-AC1

Brand: Watlow Electric Mfg.

10A SPST N/O 240Vac Power 90~280Vac Control

Zero cross fire Back to back SCR design Maximum I²T fusing is 60A² seconds Line voltage 24~240Vac Ambient operating temperature -40°F to +176°F Thermal resistance 1.48°F C/W Internal voltage snubber Equal to Crydom A2410 and Potter & Brumfield SSRT-240A10

$63.48

In stock

Reference: DA10-60F0-0000

Brand: Watlow Electric Mfg.

DA10-60F0-0000 Watlow Din-A-Mite A

Line Voltage 277~600Vac 1-Phase 4~20mA Proportional Control Din Rail Mount or Flat Panel Mounting Back to Back SCR Design Zero Cross Switching Up-To 25A@80°F (see table below)

$239.00

Last items in stock

Showing 1-12 of 155 item(s)
