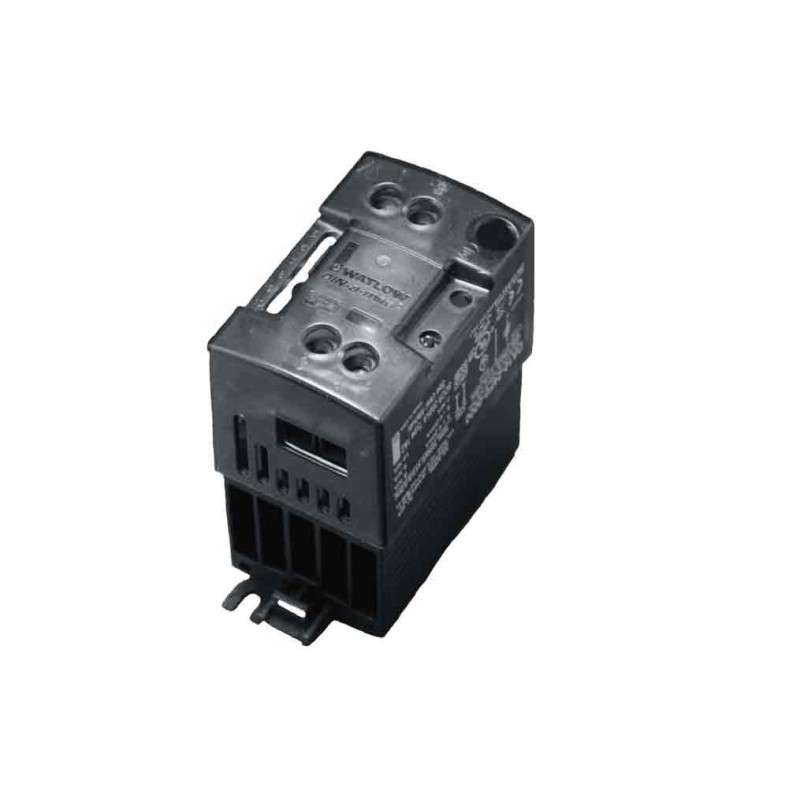

DA10-60F0-0000 Watlow Din-A-Mite A

Reference DA10-60F0-0000

Brand Watlow Electric Mfg.

Line Voltage 277~600Vac 1-Phase
4~20mA Proportional Control
Din Rail Mount or Flat Panel Mounting
Back to Back SCR Design
Zero Cross Switching Up-To 25A@80°F (see table below)

$239.00

Quantity

Last items in stock

In stock: 1 Item

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description

Current De-Ratings Shown Are Based On Natural Convection (No Artificial Cooling)

167°F....10-Amp

140°F....15-Amp

113°F....20-Amp

80°F....25-Amp

The Watlow® Din-A-Mite "A" Power Controller has a Short Circit Test Rating of 200-Ka @ 480Vac

Dimensions: 3.7"L x 1.8"W x 3.9"D

Product Details

Reference DA10-60F0-0000

EAN13 0

In stock 1 Item

Attachments

Download

DinAMite-A Rev-K Manual

Download (2.61KB)

4 other products in the same category:

Reference: DA10-02K3-0000

Brand: Watlow Electric Mfg.

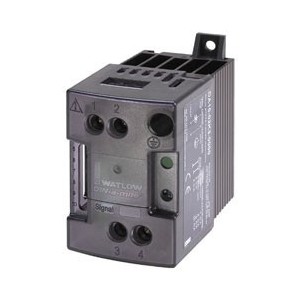

DA10-02K3-0000 Watlow Din-A-Mite A
