WATER

WATER

Consisting of round rod heaters with hairpin bends mounted on a threaded plug with a general purpose wiring enclosure these screw plug heaters are recommended for heating applications of water either deionized or demineralized.

Active filters
BCC12J10-20 BCC12J10-20

Reference: BCC12J10-20

Brand: Watlow Electric Mfg.

1"NPT 2kw 240v 1-phase 12-1/2" long

One (1) 1/4-inch copper heating element 12-1/2 inch immersion length single-phase 240v 2000W @ 60 watt per sq inch density Includes a thermowell for a 1/4-inch bulb General purpose wiring enclosure Silicone resin rated 221°F on element end seals 1"NPT screw mounted plug Watlow BCC12J10-20
$221.95
More 1"NPT 2kw 240v 1-phase 12-1/2" long
Last items in stock
Watlow BLR77L3S Screw Plug Watlow BLR77L3S Screw Plug

Reference: BLR77L3S

Brand: Watlow Electric Mfg.

BLR77L3S screw plug immersion heater

Comes with a general purpose wiring enclosure and (3) 316-ss passivated 7.625-inch immersed length heating elements with epoxy resin element end seals rated at 194°F and a thermowell for sensor. The heater has no heat the first 2.625 inches from the screw plug and has an approximate shipping weight of 6/lbs.
$2,030.00
More BLR77L3S screw plug immersion heater
Last items in stock
Watlow BLR77L3S4 Immersion Heater Watlow BLR77L3S4 Immersion Heater

Reference: BLR77L3S4

Brand: Watlow Electric Mfg.

BLR77L3S4 screw plug immersion heater

240V 3-phase 3.0kW General Purpose Wiring Enclosure DPST on/off from 30°F to 110°F with a differential up to 12°F  2 1/2-inch NPT Screw Plug WATROD elements No heat the first 2.625 inches from the the 2-1/2"npt screw plug (3) 316-ss passivated 7.625-inch immersed length heating elements Epoxy resin end seals rated at 194°F and a thermowell for sensor
$2,488.00
More BLR77L3S4 screw plug immersion heater
Last items in stock
Out-of-Stock 2-1/2"npt 9kw 480v 3-phase 25" long 2-1/2"npt 9kw 480v 3-phase 25" long

Reference: BLN724R5S

Brand: Watlow Electric Mfg.

2-1/2"npt 9kw 480v 3-phase 25" long

Three 304-SS elements 24.875 immersion length 3-phase delta wiring 480v 9000W @ 47.5 watt density Cold section below screw plug 3.9375" General purpose wiring enclosure Silicone resin rated 221°F on element end seals 2-1/2"NPT screw mounted plug Watlow BLN724R5-22
$1,346.00
More 2-1/2"npt 9kw 480v 3-phase 25" long
Out-of-Stock
Immersion Heater Screw Plug | BLR717L3S Immersion Heater Screw Plug | BLR717L3S

Reference: BLR717L5S

Brand: Watlow Electric Mfg.

BLR717L5S screw plug immersion heater

Comes wired 480v 3-phase delta in a general purpose wiring enclosure It has (3) 316-ss passivated 17.625-inch immersed length heating elements with expoxy resin end seals rated at 194ºF and provide up to 7.5kw Also included is an integral thermowell for a sensor (sensor not included) The heater has no heat the first 4.125-inches from the 2-1/2-inch NPT...
$2,116.00
More BLR717L5S screw plug immersion heater
Last items in stock
Immersion Heater Screw Plug | BLR77L5S Immersion Heater Screw Plug | BLR77L5S

Reference: BLR77L5S

Brand: Watlow Electric Mfg.

BLR77L5S screw plug immersion heater

Comes with a general purpose wiring enclosure and (3) 316-ss passivated 7.625-inch immersed length heating elements with epoxy resin element end seals rated at 194°F and a thermowell for sensor. The heater has no heat the first 2.625 inches from the screw plug and has an approximate shipping weight of 6/lbs.
$2,030.00
More BLR77L5S screw plug immersion heater
Last items in stock
Watlow BLR77L5S4 Immersion Heater Watlow BLR77L5S4 Immersion Heater

Reference: BLR77L5S4

Brand: Watlow Electric Mfg.

BLR77L5S4 screw plug immersion heater

Comes with a general purpose enclosure and a thermostatDPST on/off from 30°F to 110°F with differential setting up to 12°Fthe heater has (3) 316-ss passivated 7.625-inch length heating elementswith epoxy resin end seals rated at 194°F and a thermowell for sensor.The heater has no heat the first 2.625 inches from the screw plug and hasan approximate...
$2,488.00
More BLR77L5S4 screw plug immersion heater
Last items in stock
Watlow BLR77L1C explosion proof immersion Heater Watlow BLR77L1C explosion proof immersion Heater

Reference: BLR77L1C

Brand: Watlow Electric Mfg.

BLR77L1C screw plug immersion heater

120V 1-phase 3.0kW Explosion Proof Wiring Enclosure 2 1/2-inch NPT Screw Plug WATROD elements No heat the first 2.625 inches from the the 2-1/2"npt screw plug (3) 316-ss passivated 7.625-inch immersed length heating elements Epoxy resin end seals rated at 194°F and a thermowell for sensor
$2,303.00
More BLR77L1C screw plug immersion heater
Last items in stock
Watlow BLR77L3S5A Immersion Heater Watlow BLR77L3S5A Immersion Heater

Reference: BLR77L3S5A

Brand: Watlow Electric Mfg.

BLR77L3S5A screw plug immersion heater

Comes with a general purpose wiring enclosure and a thermostat DPST on/off from 60°F to 250°F with a differential up to 12°F  the heater has (3) 316-ss passivated 7.625-inch length heating elements with epoxy resin end seals rated at 194°F and a thermowell for sensor. The heater has no heat the first 2.625 inches from the screw plug and has an...
$2,488.00
More BLR77L3S5A screw plug immersion heater
Last items in stock

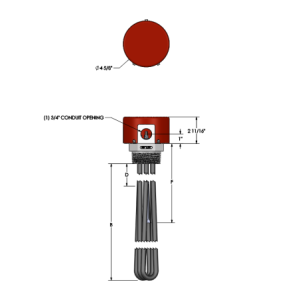

Immersion Heater Screw Plug | BLR717L3S Immersion Heater Screw Plug | BLR717L3S

Reference: BLR717L5C

Brand: Watlow Electric Mfg.

BLR717L5C screw plug immersion heater

Comes wired 480v 3-phase delta in an explosion proof wiring enclosure It has (3) 316-ss passivated 17.625-inch immersed length heating elements with expoxy resin end seals rated at 194ºF and provide up to 7.5kw Also included is an integral thermowell for a sensor (sensor not included) The heater has no heat the first 4.125-inches from the 2-1/2-inch NPT...
$2,389.00
More BLR717L5C screw plug immersion heater
Last items in stock
Watlow BLR77L3C4 Immersion Heater Watlow BLR77L3C4 Immersion Heater

Reference: BLR77L3C

Brand: Watlow Electric Mfg.

BLR77L3C screw plug immersion heater

Comes with an explosion proof wiring enclosure and (3) 316-ss passivated 7.625-inch immersed length heating elements with epoxy resin element end seals rated at 194°F and a thermowell for sensor. The heater has no heat the first 2.625 inches from the screw plug and has an approximate shipping weight of 9/lbs.
$2,303.00
More BLR77L3C screw plug immersion heater
Last items in stock
Watlow BLR77L5S5A Immersion Heater Watlow BLR77L5S5A Immersion Heater

Reference: BLR77L5S5A

Brand: Watlow Electric Mfg.

BLR77L5S5A screw plug immersion heater

Comes with a DPST 60-250°F thermostat with a differential setting up to 12°F in a general purpose enclosure and with  (3) 316-ss passivated 7.625-inch immersed length heating elements with epoxy resin element end seals rated at 194°F and a thermowell for sensor. The heater has no heat the first 2.625 inches from the screw plug and has an approximate ship...
$2,488.00
More BLR77L5S5A screw plug immersion heater
Last items in stock
