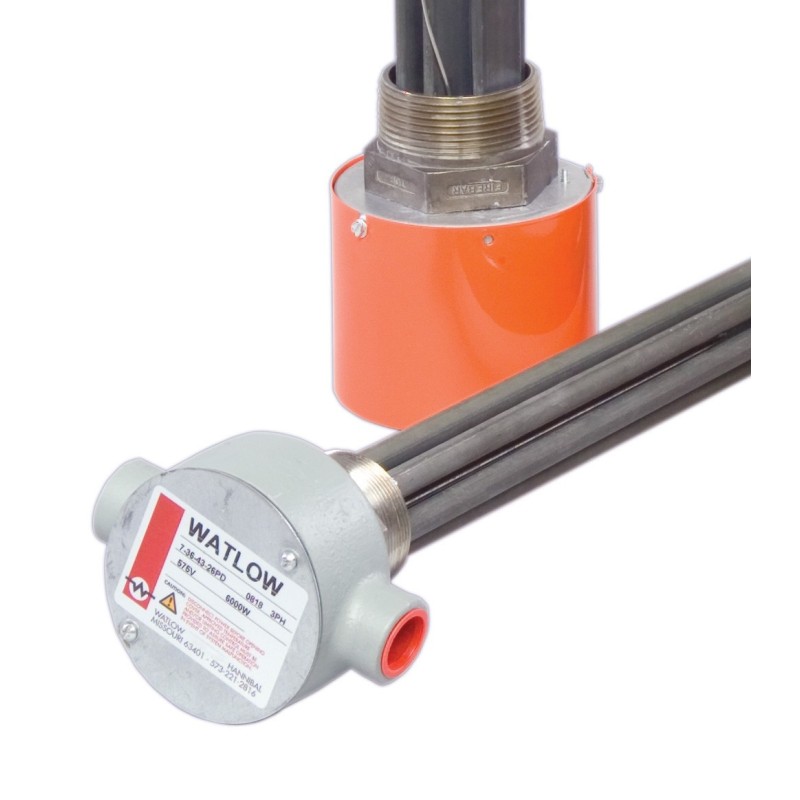

BLR77L3S screw plug immersion heater

Reference BLR77L3S

Brand Watlow Electric Mfg.

Comes with a general purpose wiring enclosure and
(3) 316-ss passivated 7.625-inch immersed length heating elements
with epoxy resin element end seals rated at 194°F and a thermowell for sensor.
The heater has no heat the first 2.625 inches from the screw plug and has
an approximate shipping weight of 6/lbs.

$2,030.00

Ships 3-days after order entry

Quantity

In stock: 2 Items

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description

Screw Plug | BLR77L3S

Applications that require heating Deionized/Demineralized Water

Steam boilers and cooling systems
Manufacturing lead-acid batteries
Car washes
Electronics manufacturing
Medical and Pharmaceutical manufacturing
Cleaning processes
Manufacturing Cosmetics and Personal Care Products

Features & Benefits of the Watlow® immersion heater

The integral thermowell provides a convenient method for temperature sensor insertion and allowing a replacement without draining the fluid being heated. The CSA approved general purpose enclosure can be rotated to simplify connecting to existing conduits. The WATROD™ hairpin bends are re-compacted to maintain the mineral insulation density and maintain the dielectric strength and heat transfer efficiency. The heating elements have a bright annealing passivation for corrosion resistance and the elements have a support to ensure proper spacing to maximize the heater’s performance.

Ideal Immersion Heating for Liquids & Oils using Heat Transfer Solutions.

Review the above tabs for Data Sheets, FAQ's & Attachments; more specifics and manuals.

Product Details

Reference BLR77L3S

In stock 2 Items

Attachments

Download

Screw Plug Immersion Heaters

Application: Deionized Demineralized Water

Download (2.61KB)
