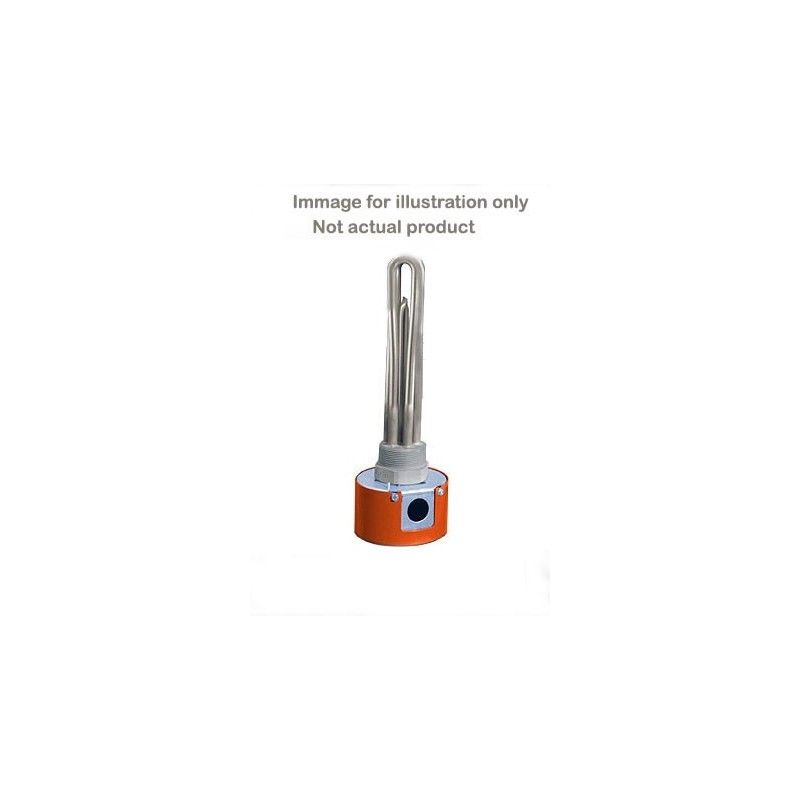

BLR710L3C4 screw plug immersion heater

Reference BLR710L3C4

Brand Watlow Electric Mfg.

Comes wired 240v 3-phase delta in an explosion proof wiring enclosure
it has (3) 316-ss passivated 10.625-inch immersion length
heating elements with epoxy resin end seals rated at 194°F
and an integral thermowell for sensor.
It also has a DPST 30A thermostat control from 30°F to 110°F with a differential up to 12°F
The heater has no heat the first 2.625 inches from the 2-1/2"NPT screw plug
The approximate shipping weight is 15/lbs.

$3,152.00

Quantity

Last items in stock

In stock: 1 Item

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description
Product Details

Description

2-1/2" Screw Plug Immersion Heater | BLR710L3C4

Applications that require heating Deionized/Demineralized Water

Steam boilers and cooling systems
Manufacturing lead-acid batteries
Car washes
Electronics manufacturing
Medical and Pharmaceutical manufacturing
Cleaning processes
Manufacturing Cosmetics and Personal Care Products

Features & Benefits of the Watlow® immersion heater

The integral thermowell provides a convenient method for temperature sensor insertion and allowing a replacement without draining the fluid being heated. The WATROD™ hairpin bend is re-compacted to maintain the mineral insulation density and maintain the dielectric strength and heat transfer efficiency. The heating element has a bright annealing passivation for corrosion resistance.

NOTE: A NEMA-7 enclosure designated for locations classified as Class-1, Division-1, Groups A,B,C, or D as defined in NFPA 70 is installed on this heater; however, is NOT CERTIFIED as installed on the heater. To obtain CSA certification as explosion proof Class-1, Groups B,C,D as installed on the heater, the end user must provide Watlow® the following intended process conditions: operating temperature, operating pressure, media type being heated, including the installation orientation of the heater (horizontal or vertical).

One conduit hub is supplied as per drawing.

Product Details

Reference BLR710L3C4

In stock 1 Item

Data sheet

Thermostat:30°: 110°F range with up to 12° differential:0
