Watlow Designs And Manufactures Industrial Heaters, Temperature Sensors, Controllers And Supporting Software As Well As Assemblies – All Of The Components Of A Thermal System. Watlow Holds More Than 200 Patents And Has More Than 2,000 Employees Working In 12 Facilities In The United States, Mexico, Europe and Asia.
Watlow Holds More Than 200 Patents And Employs 2,000 Employees Working In 12 Manufacturing Facilities In The United States, Mexico, Europe and Asia. Watlow Designs And Manufactures Industrial Heaters, Sensors And Controllers.
One (1) 1/4-inch copper heating element 12-1/2 inch immersion length
single-phase 240v
2000W @ 60 watt per sq inch density
Includes a thermowell for a 1/4-inch bulb
General purpose wiring enclosure
Silicone resin rated 221°F on element end seals
1"NPT screw mounted plug
Watlow BCC12J10-20
Comes wired 240v 3-phase delta in a general purpose wiring enclosure
It has (3) 316-ss passivated 17.6250-inch immersed length heating elements
with epoxy resin end seals rated at 194ºF and provide up to 7.5kw
Also included is an integral thermowell for a sensor (sensor not included)
The heater has no heat the first 4.125-inches from the 2-1/2-inch NPT...
Wired 120V 1-phase parallel in a general purpose wiring enclosure
it has (3) 316-ss passivated 10.625-inch immersed length heating elements
with epoxy resin end seals rated at 194ºF and a thermowell for sensor.
The heater has no heat the first 2.625 inches from the 2 1/2-inch NPT Screw Plug
and has an approximate shipping weight of 10/lbs.
Comes with a general purpose wiring enclosure and
(3) 316-ss passivated 7.625-inch immersed length heating elements
with epoxy resin element end seals rated at 194°F and a thermowell for sensor.
The heater has no heat the first 2.625 inches from the screw plug and has
an approximate shipping weight of 6/lbs.
240V 3-phase 3.0kW
General Purpose Wiring Enclosure
DPST on/off from 30°F to 110°F with a differential up to 12°F

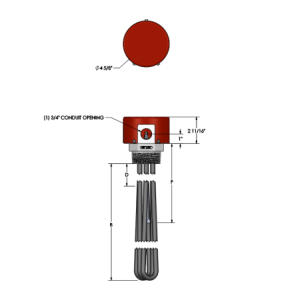

2 1/2-inch NPT Screw Plug
WATROD elements
No heat the first 2.625 inches from the the 2-1/2"npt screw plug
(3) 316-ss passivated 7.625-inch immersed length heating elements
Epoxy resin end seals rated at 194°F and a thermowell for sensor
Watlow EZ-Zone®ST
PID controller with Tru-Tune®+ adaptive technology
Output-1 = dedicated SSR driver for power switching relay
Output-2 = SSR 0.5A single pole single throw
Limit controller
Output-3 = SSR 5A double pole double throw
Output-4 = SSR 2A single pole single throw
Definite purpose electro-mechanical contactor 40A 2-Pole
25A Load switching solid...
Input Voltage Range 100 ~ 240Vac
Output Voltage Can Be Adjusted From The Front Panel
Adjustable Output Voltage Range 24 ~ 28Vdc
Red & Green LED Indicators Provide Output Status
Class II Insulation Requires No Earth Ground
Operating Temperature -25° ~ +71°c
Low Profile Din-Rail Mount 2.2" deep
Zero cross fire
Back to back SCR design
Maximum I²T fusing is 260A²seconds
Line voltage 24~240Vac
Ambient operating temperature -40°F to +176°F
Thermal resistance 1.05°F C/W
Internal voltage snubber
Includes thermal foil, washers, and screws for mounting to a heat sink
Equal to Crydom D2425 and Potter & Brumfield SSRT-240D25
