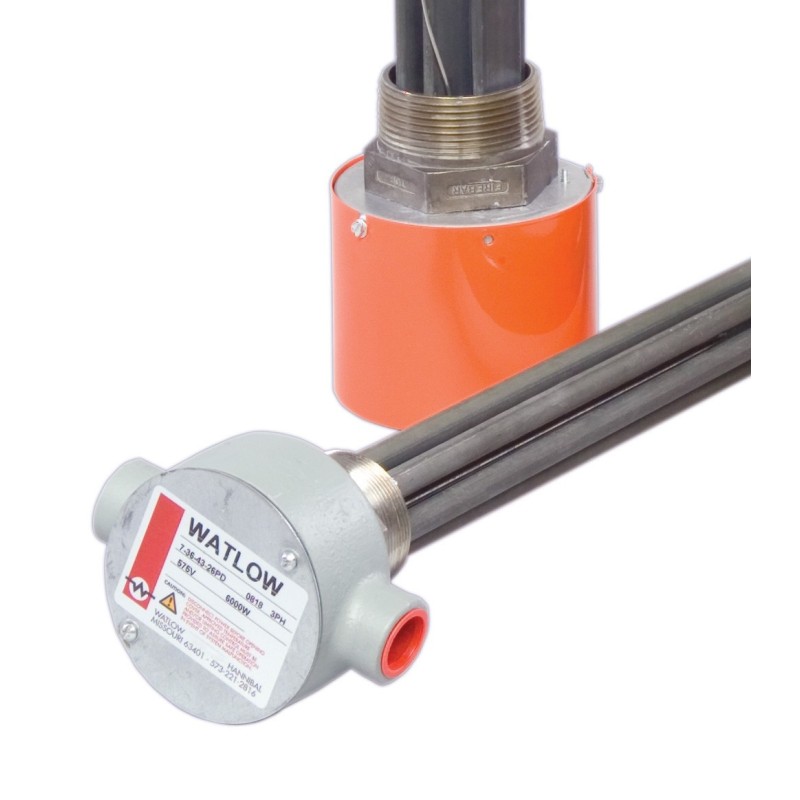

BLR710L1S screw plug immersion heater

Reference BLR710L1S

Brand Watlow Electric Mfg.

Wired 120V 1-phase parallel in a general purpose wiring enclosure
it has (3) 316-ss passivated 10.625-inch immersed length heating elements
with epoxy resin end seals rated at 194ºF and a thermowell for sensor.
The heater has no heat the first 2.625 inches from the 2 1/2-inch NPT Screw Plug
and has an approximate shipping weight of 10/lbs.

$2,054.00

Ships 5-days after order entry

Quantity

Last items in stock

In stock: 1 Item

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description

2-1/2"NPT Screw Plug Immersion Heater | BLR710L1S

Application: Deionized/Demineralized Water

Steam boilers and cooling systems
Manufacturing lead-acid batteries
Car washes
Electronics manufacturing
Medical and Pharmaceutical manufacturing
Cleaning processes
Manufacturing Cosmetics and Personal Care Products

Features & Benefits of the Watlow® Immersion Heater

The integral thermowell provides a convenient method for temperature sensor insertion and allowing a replacement without draining the fluid being heated. The CSA approved general purpose enclosure can be rotated to simplify connecting to existing conduits. The WATROD™ hairpin bend is re-compacted to maintain the mineral insulation density and maintain the dielectric strength and heat transfer efficiency. The heating elements have a bright annealing passivation for corrosion resistance and the screw plug is 316SS.

Ideal Immersion Heating for Liquids & Oils using Heat Transfer Solutions.

Review the above tabs for Data Sheets, FAQ's & Attachments; more specifics and manuals.

Product Details

Reference BLR710L1S

In stock 1 Item

Attachments

Download

Screw Plug Immersion Heaters

Application: Deionized Demineralized Water

Download (2.61KB)
