Immersion Heaters

Immersion heaters are designed primarily for direct immersion in liquids such as water, oils, solvents and process solutions, molten materials as well as air and gases. By generating all the heat within the liquid or process, these heaters are virtually 100 percent energy efficient. These versatile heaters can be formed and shaped into various geometries. The heating elements are offered in a number of materials suited to a variety of fluid heating applications. Terminal housings are available for indoor, outdoor and hazardous environments. Many options are available including thermostats, high limit and process thermocouples or RTD sensors.

Subcategories

There are 67 products.

Sort by:

Showing 1-12 of 67 item(s)

Reference: BCC12J10-20

Brand: Watlow Electric Mfg.

1"NPT 2kw 240v 1-phase 12-1/2" long

One (1) 1/4-inch copper heating element 12-1/2 inch immersion length single-phase 240v 2000W @ 60 watt per sq inch density Includes a thermowell for a 1/4-inch bulb General purpose wiring enclosure Silicone resin rated 221°F on element end seals 1"NPT screw mounted plug Watlow BCC12J10-20

$221.95

Last items in stock

Out-of-Stock

Reference: 6-21-299-1

Brand: Watlow Electric Mfg.

10kw 480v 5" Sq. flange immersion heater

10kw 240/480v 3-phase 5"sq flange immersion heater 7-11/16" immersion depth with general purpose enclosure.

$349.69

Out-of-Stock

Reference: BLR77L3S

Brand: Watlow Electric Mfg.

BLR77L3S screw plug immersion heater

Comes with a general purpose wiring enclosure and (3) 316-ss passivated 7.625-inch immersed length heating elements with epoxy resin element end seals rated at 194°F and a thermowell for sensor. The heater has no heat the first 2.625 inches from the screw plug and has an approximate shipping weight of 6/lbs.

$2,030.00

Last items in stock

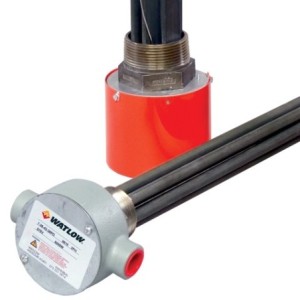

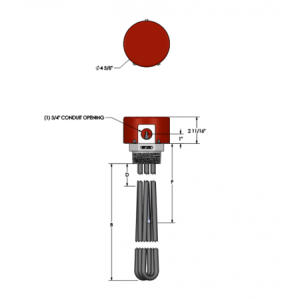

Reference: BLR77L3S4

Brand: Watlow Electric Mfg.

BLR77L3S4 screw plug immersion heater

240V 3-phase 3.0kW General Purpose Wiring Enclosure DPST on/off from 30°F to 110°F with a differential up to 12°F 2 1/2-inch NPT Screw Plug WATROD elements No heat the first 2.625 inches from the the 2-1/2"npt screw plug (3) 316-ss passivated 7.625-inch immersed length heating elements Epoxy resin end seals rated at 194°F and a thermowell for sensor

$2,488.00

Last items in stock

Out-of-Stock

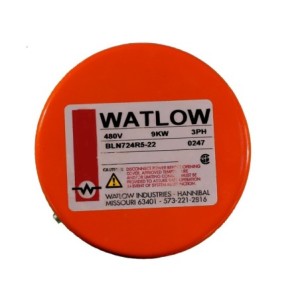

Reference: BLN724R5S

Brand: Watlow Electric Mfg.

2-1/2"npt 9kw 480v 3-phase 25" long

Three 304-SS elements 24.875 immersion length 3-phase delta wiring 480v 9000W @ 47.5 watt density Cold section below screw plug 3.9375" General purpose wiring enclosure Silicone resin rated 221°F on element end seals 2-1/2"NPT screw mounted plug Watlow BLN724R5-22

$1,346.00

Out-of-Stock

Reference: 6-22-12-2

Brand: Watlow Electric Mfg.

9kw 480v 6" Round flange immersion heater

9kw 480v 3-phase 6"round flange immersion heater 29" immersion depth no enclosure.

$302.80

Last items in stock

Out-of-Stock

Reference: 6-29-167-1

Brand: Watlow Electric Mfg.

9kw 480v 6" Sq. flange immersion heater

9kw 240/480v 3-phase 6"sq flange immersion heater 15-1/4" immersion depth no enclosure.

$347.42

Out-of-Stock

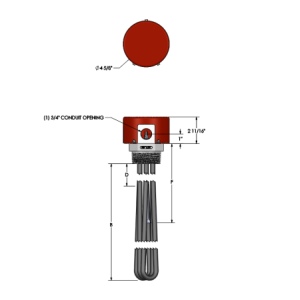

Reference: BLR717L5S

Brand: Watlow Electric Mfg.

BLR717L5S screw plug immersion heater

Comes wired 480v 3-phase delta in a general purpose wiring enclosure It has (3) 316-ss passivated 17.625-inch immersed length heating elements with expoxy resin end seals rated at 194ºF and provide up to 7.5kw Also included is an integral thermowell for a sensor (sensor not included) The heater has no heat the first 4.125-inches from the 2-1/2-inch NPT...

$2,116.00

Last items in stock

Reference: BLR77L5S

Brand: Watlow Electric Mfg.

BLR77L5S screw plug immersion heater

$2,030.00

Last items in stock

Reference: BLR77L5S4

Brand: Watlow Electric Mfg.

BLR77L5S4 screw plug immersion heater

Comes with a general purpose enclosure and a thermostatDPST on/off from 30°F to 110°F with differential setting up to 12°Fthe heater has (3) 316-ss passivated 7.625-inch length heating elementswith epoxy resin end seals rated at 194°F and a thermowell for sensor.The heater has no heat the first 2.625 inches from the screw plug and hasan approximate...

$2,488.00

Last items in stock

Watlow BLR77L1C explosion proof immersion Heater

Reference: BLR77L1C

Brand: Watlow Electric Mfg.

BLR77L1C screw plug immersion heater

120V 1-phase 3.0kW Explosion Proof Wiring Enclosure 2 1/2-inch NPT Screw Plug WATROD elements No heat the first 2.625 inches from the the 2-1/2"npt screw plug (3) 316-ss passivated 7.625-inch immersed length heating elements Epoxy resin end seals rated at 194°F and a thermowell for sensor

$2,303.00

Last items in stock

Reference: BLR77L3S5A

Brand: Watlow Electric Mfg.

BLR77L3S5A screw plug immersion heater

Comes with a general purpose wiring enclosure and a thermostat DPST on/off from 60°F to 250°F with a differential up to 12°F the heater has (3) 316-ss passivated 7.625-inch length heating elements with epoxy resin end seals rated at 194°F and a thermowell for sensor. The heater has no heat the first 2.625 inches from the screw plug and has an...

$2,488.00

Last items in stock

Showing 1-12 of 67 item(s)
