FORMED

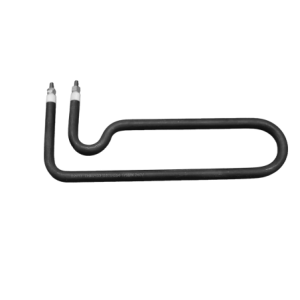

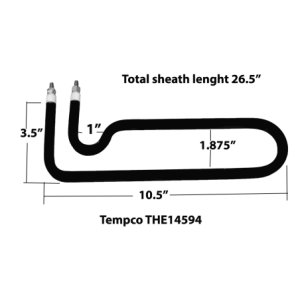

3600w 220v .475" rod diameter total watt density=33w/sq-in, sheath material alloy 800 oxide annealed, wall thickness 0.035", no-heat first 2" each end, RTV end seals rated 392°F, 60" TGGT lead wire rated 480°F crimped on rod ends.

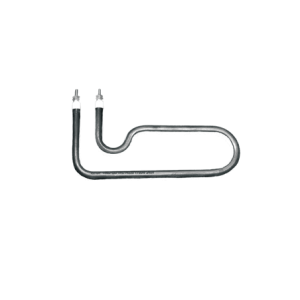

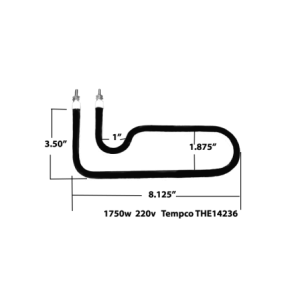

1750w 240v .430" rod diameter. Sheath total length 21.5" double end 10-32 screw terminals

1750w 240v .430" rod diameter. Sheath total length 26.5" double end 10-32 screw terminals
