Watlow RGN77E35H-2
  • Watlow RGN77E35H-2
  • Watlow RGN77E35H-2 configuration

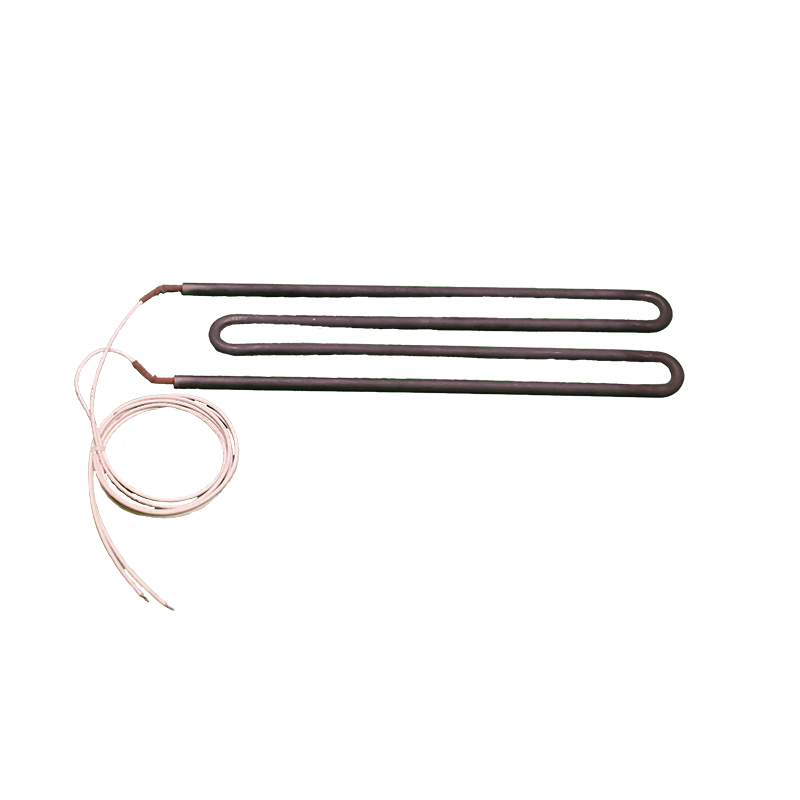

Watlow RGN77E35H-2

RGN77E35H-2

3600w 220v .475" rod diameter total watt density=33w/sq-in, sheath material alloy 800 oxide annealed, wall thickness 0.035", no-heat first 2" each end, RTV end seals rated 392°F, 60" TGGT lead wire rated 480°F crimped on rod ends.

$416.65
Quantity
3 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Product Details
RGN77E35H-2
3 Items
4 other products in the same category:
Watlow BLR720L3S | 2-1/2"NPT screw plug immersion heater Watlow BLR720L3S | 2-1/2"NPT screw plug immersion heater

Reference: BLR720L3S

Brand: Watlow Electric Mfg.

BLR720L3S Screw Plug Immersion Heater

Comes wired 240v 3-phase delta in a general purpose wiring enclosure It has (3) 316-ss passivated 20.6250-inch immersed length heating elements with epoxy resin end seals rated at 194ºF and provide up to 9kw Also included is an integral thermowell for a sensor (sensor not included) The heater has no heat the first 4.125-inches from the 2-1/2-inch NPT...
$2,141.00
More BLR720L3S Screw Plug Immersion Heater
In stock
