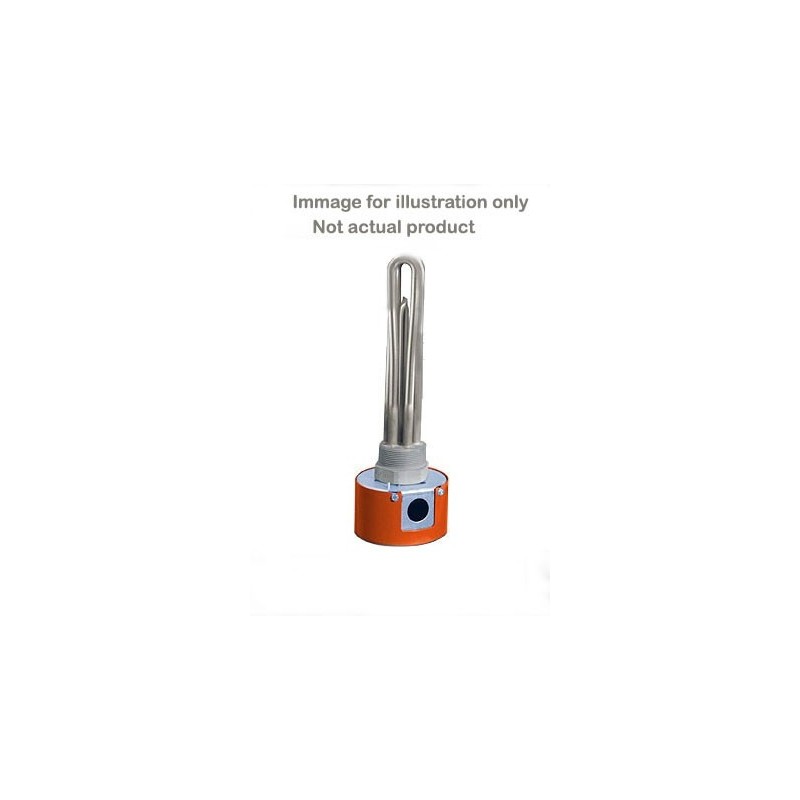

BLR77L3S7A with 550°F thermostat w/general purpose wiring enclosure

BLR77L3S7A screw plug immersion heater

Reference BLR77L3S7A

Brand Watlow Electric Mfg.

Comes with a general purpose wiring enclosure and a thermostat
DPST on/off from 100°F to 550°F with a differential up to 22°F
the heater has (3) 316-ss passivated 7.625-inch length heating elements
with epoxy resin end seals rated at 194°F and a thermowell for sensor.
The heater has no heat the first 2.625 inches from the screw plug and has
an approximate shipping weight of 8/lbs.

$2,488.00

Quantity

Last items in stock

In stock: 1 Item

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description
Product Details

Description

Applications that require heating Deionized/Demineralized Water

Steam boilers and cooling systems
Manufacturing lead-acid batteries
Car washes
Electronics manufacturing
Medical and Pharmaceutical manufacturing
Cleaning processes
Manufacturing Cosmetics and Personal Care Products

Features & Benefits of the Watlow® immersion heater

The integral thermowell provides a convenient method for temperature sensor insertion and allowing a replacement without draining the fluid being heated. The CSA approved general purpose enclosure can be rotated to simplify connecting to existing conduits. The WATROD™ hairpin bends are re-compacted to maintain the mineral insulation density and maintain the dielectric strength and heat transfer efficiency. The heating elements have a bright annealing passivation for corrosion resistance and the elements have a support to ensure proper spacing to maximize the heater’s performance.

Product Details

Reference BLR77L3S7A

In stock 1 Item

Data sheet

Thermostat:60°: 250°F range with up to 12° differential :0
