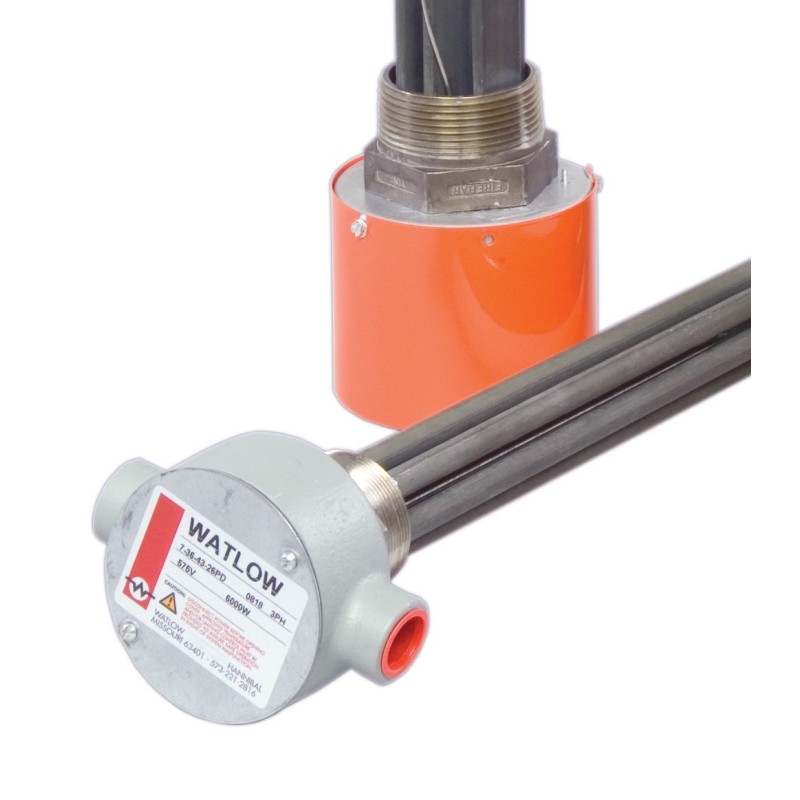

BLR717L3C screw plug immersion heater

2-1/2"NPT screw plug immersion heater | BLR717L3C

Applications that require heating Deionized/Demineralized water include:

• Steam boilers and cooling systems
• Car washes
• Electronics manufacturing
• Cleaning processes
• Manufacturing cosmetics and personal care products
• Manufacturing lead-acid batteries
• Medical and pharmaceutical manufacturing

Features & Benefits of the Watlow® immersion heater

The integral thermowell provides a convenient method for temperature sensor insertion and allowing a replacement without draining the fluid being heated. The WATROD™ hairpin bend is re-compacted to maintain the mineral insulation density and maintain the dielectric strength and heat transfer efficiency. The heating element has a bright annealing passivation for corrosion resistance.

NOTE: A NEMA-7 enclosure designated for locations classified as Class-1, Division-1, Groups A,B,C, or D as defined in NFPA 70 is installed on this heater; however, is NOT CERTIFIED as installed on the heater. To obtain CSA certification as explosion proof Class-1, Groups B,C,D as installed on the heater, the end user must provide Watlow® the following intended process conditions: operating temperature, operating pressure, media type being heated, including the installation orientation of the heater (horizontal or vertical).

One conduit hub is supplied as per drawing.
