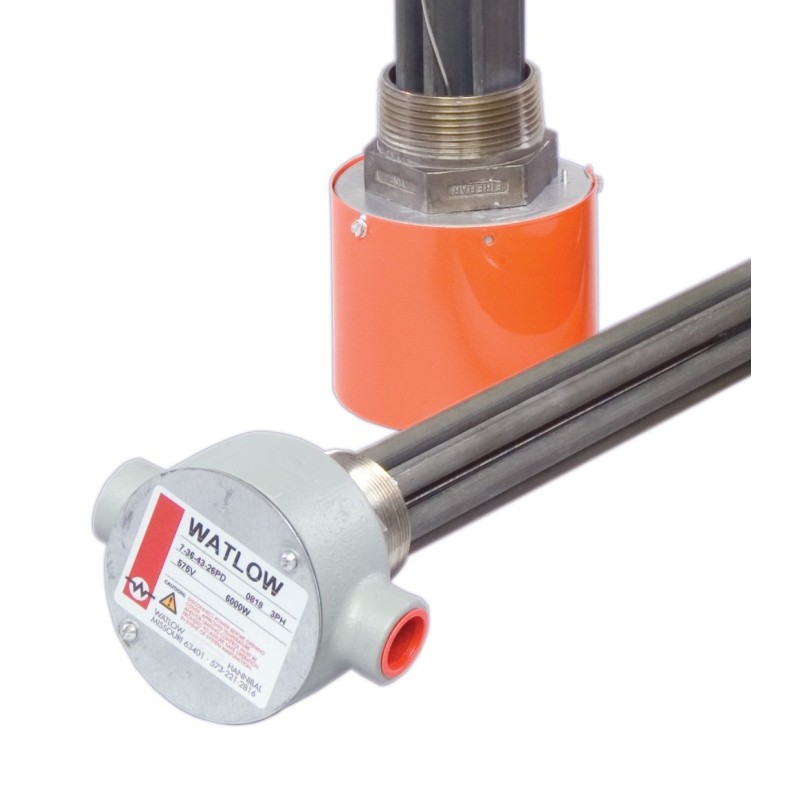

BLR717L3S7A screw plug immersion heater

Reference BLR717L3S7A

Brand Watlow Electric Mfg.

Comes wired 240v 3-phase delta in a general purpose wiring enclosure
It has (3) 316-ss passivated 17.625-inch immersed length heating elements
with expoxy resin end seals rated at 194ºF and provide up to 7.5kw
Also included is an integral thermowell for a sensor (sensor not included)
and a 30A DPST thermostat control from 100ºF to 550ºF with a 22º differential
The heater has no heat the first 4.125-inches from the 2-1/2-inch NPT screw plug
and has an approximate shipping weight of 10/Lbs.

$2,574.00

Ship 5-days after order entry

Quantity

Last items in stock

In stock: 1 Item

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description
Product Details

Description

2-1/2"NPT screw plug immersion heater | BLR717L3S7A

Applications for heating Deionized/Demineralized water include:

Steam boilers and cooling systems
Cleaning processes
Electronics manufacturing
Manufacturing cosmetics and personal care products
Medical and pharmaceutical manufacturing
Manufacturing lead-acid batteries
Car washes

Features & Benefits of the Watlow® immersion heater

The integral thermowell provides a convenient method for temperature sensor insertion and allowing a replacement without draining the fluid being heated. The CSA approved general purpose enclosure can be rotated to simplify connecting to existing conduits. The WATROD™ hairpin bend is re-compacted to maintain the mineral insulation density and maintain the dielectric strength and heat transfer efficiency. The heating elements have a bright annealing passivation for corrosion resistance and the screw plug is 316SS.

Ideal Immersion Heating for Liquids & Oils using Heat Transfer Solutions.

Review the above tabs for Data Sheets, FAQ's & Attachments; more specifics and manuals.

Product Details

Reference BLR717L3S7A

In stock 1 Item

Condition New
