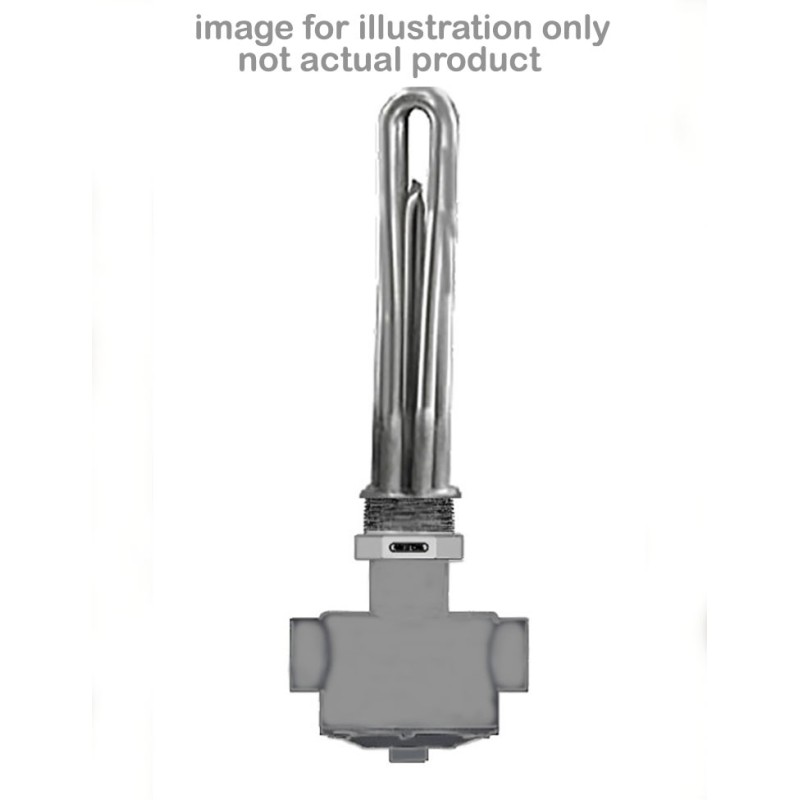

BLR710L3C explosion proof immersion heater

BLR710L3C screw plug immersion heater

Reference BLR710L3C

Brand Watlow Electric Mfg.

Comes wired 240v 3-phase delta in an explosion proof wiring enclosure
it has (3) 316-ss passivated 10.625 inch immersed length
heating elements with epoxy resin end seals rated at194°F and a
thermowell for sensor. The heater has no heat the first 2.625 inches
from the 2-1/2"NPT screw plug and has an approximate shipping
weight of 15/lbs.

$2,327.00

Quantity

Last items in stock

In stock: 1 Item

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description
Product Details

Description

2-1/2"NPT Screw Plug Immersion Heater | BLR710L3C

Applications that require heating Deionized/Demineralized Water

Steam boilers and cooling systems
Manufacturing lead-acid batteries
Car washes
Electronics manufacturing
Medical and Pharmaceutical manufacturing
Cleaning processes
Manufacturing Cosmetics and Personal Care Products

Features & Benefits of the Watlow® immersion heater

The integral thermowell provides a convenient method for temperature sensor insertion and allowing a replacement without draining the fluid being heated. The WATROD™ hairpin bend is re-compacted to maintain the mineral insulation density and maintain the dielectric strength and heat transfer efficiency. The heating element has a bright annealing passivation for corrosion resistance.

NOTE: A NEMA-7 enclosure designated for locations classified as Class-1, Division-1, Groups A,B,C, or D as defined in NFPA 70 is installed on this heater; however, is NOT CERTIFIED as installed on the heater. To obtain CSA certification as explosion proof Class-1, Groups B,C,D as installed on the heater, the end user must provide Watlow® the following intended process conditions: operating temperature, operating pressure, media type being heated, including the installation orientation of the heater (horizontal or vertical).

One conduit hub is supplied as per drawing.
