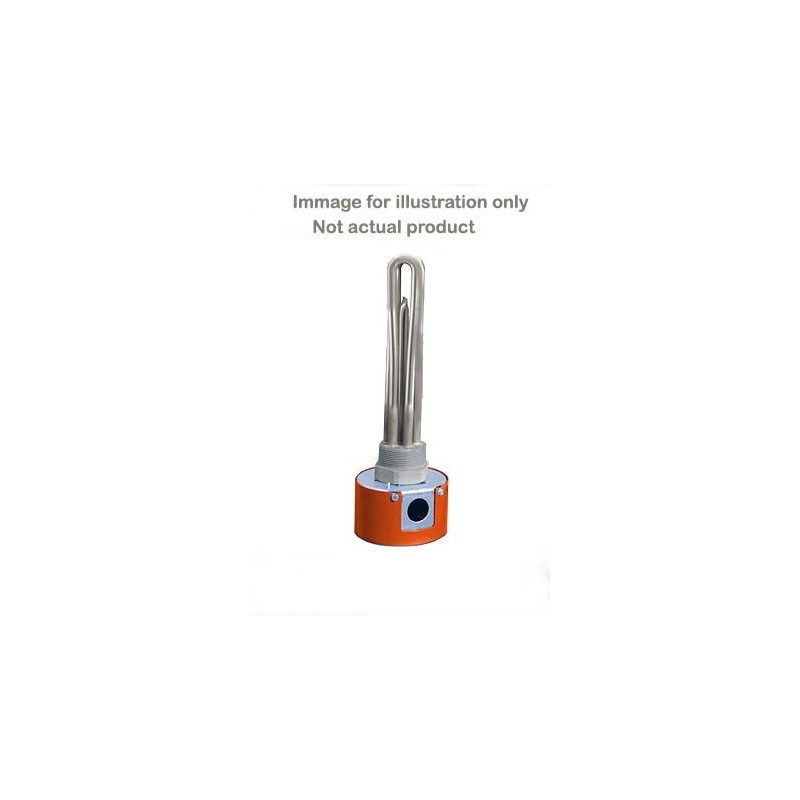

BLR710L3S5A screw plug immersion heater

Reference BLR710L3S5A

Brand Watlow Electric Mfg.

Comes wired 240v 3-phase delta in a general purpose enclosure
it has (3) 316-ss passivated 10.625 inch immersed length heating elements
with epoxy resin end seals rated at 194°F with an integral thermowell
and a DPST 30A thermostat control from 60°F to 250°F with a differential up to 12°F
The heater has no heat the first 2.625 inches from
the 2-1/2-inch screw plug and the approximate shipping
weight is 10/lbs.

$2,512.00

Quantity

Last items in stock

In stock: 1 Item

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description
Product Details

Description

2-1/2" Screw Plug Immersion Heater | BLR710L3S5A

Applications that require heating Deionized/Demineralized Water

Steam boilers and cooling systems
Manufacturing lead-acid batteries
Car washes
Electronics manufacturing
Medical and Pharmaceutical manufacturing
Cleaning processes
Manufacturing Cosmetics and Personal Care Products

Features & Benefits of the Watlow® immersion heater

The integral thermowell provides a convenient method for temperature sensor insertion and allowing a replacement without draining the fluid being heated. The CSA approved general purpose enclosure can be rotated to simplify connecting to existing conduits. The WATROD™ hairpin bend is re-compacted to maintain the mineral insulation density and maintain the dielectric strength and heat transfer efficiency. The heating elements have a bright annealing passivation for corrosion resistance and the screw plug is 316SS.

Product Details

Reference BLR710L3S5A

In stock 1 Item

Data sheet

Thermostat:60°: 250°F range with up to 12° differential :0
