3P 30A 24Vdc Mercury Contactor
  • 3P 30A 24Vdc Mercury Contactor
  • 3P 30A 24Vdc Mercury Contactor

30A 3P 24Vdc Mercury Contactor

BF3-7038
  • Coil Rating 329Ma 7.9Va 73-Ω
  • Contacts Normally Open Rated 30A@600V
  • Amperage Rating Based On Resistive Load
  • Contact Make Time 50 Milliseconds
  • Contact Break Time 80 Milliseconds
  • Temperature Range -35°c To +85°c
  • Dielectric Withstanding UpTo 2500Vac RMS
  • Direct Replacement For Watlow HG30-6KD3-0000
$121.87
Quantity
Last items in stock
1 Item

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description
  • Contacts Are Within A Hermetically Sealed Steel Body
  • Arcing Is In A Gaseous Atmosphere
  • Only One Moving Part (The Plunger)
  • Epoxy Encapsulated
  • Coil Terminals:  #6 Binding Head Screws
  • Load Terminals:  #8 Binding Head Screws
  • UL Listing:  File #E62767
  • C.S.A.:  File #LR41198
  • 1-Year Warranty
  • 330NO-24D Made In The USA By Mercury Displacement Industries, Inc.
Product Details
BF3-7038
0
1 Item
4 other products in the same category:
Out-of-Stock 100A 3P 120Vac Mercury Contactor 480V 100A 3P 120Vac Mercury Contactor 480V

Reference: CFC3-708

Brand: Mercury Displacement Industries

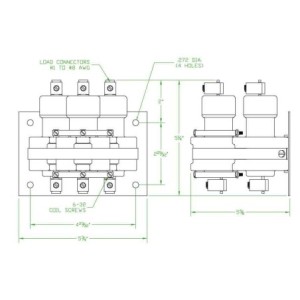

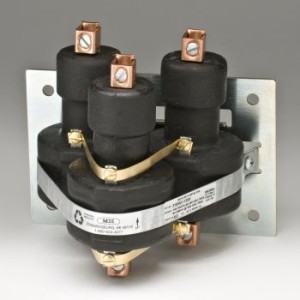

100A 3P 120Vac Mercury Contactor 480V

Coil Rating Per Pole 16.4-VA 380Ω (Coils Are In Parrallel) Contacts Normally Open Rated 100A@240/480v Amperage Rating Based On Resistive Load Contact Make Time 50 Milliseconds Contact Break Time 80 Milliseconds Temperature Range -35°c To +85°c Dielectric Withstanding UpTo 2500Vac RMS Direct Replacement For Watlow HG100-1AC3-0000
$605.43
More 100A 3P 120Vac Mercury Contactor 480V
Out-of-Stock
30A 1P 24VDC Mercury Contactor 30A 1P 24VDC Mercury Contactor

Reference: BF7046

Brand: Mercury Displacement Industries

30A 1P 24Vdc Mercury Contactor

Coil Rating 133mA 3.2Va 180-Ω Contacts Normally Open Rated 30A@600V Amperage Rating Based On Resistive Load Contact Make Time 50 Milliseconds Contact Break Time 80 Milliseconds Temperature Range -35°c To +85°c Dielectric Withstanding UpTo 2500Vac RMS Direct Replacement For Watlow HG30-6KD1-0000
$45.60
More 30A 1P 24Vdc Mercury Contactor
Last items in stock
100A 1P 24Vdc Mercury Contactor 100A 1P 24Vdc Mercury Contactor

Reference: 100NO-24D

Brand: Mercury Displacement Industries

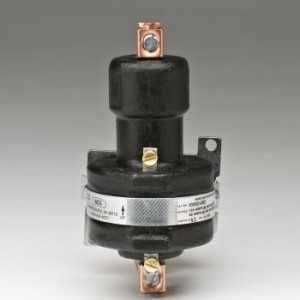

100A 1P 24Vdc Mercury Contactor
