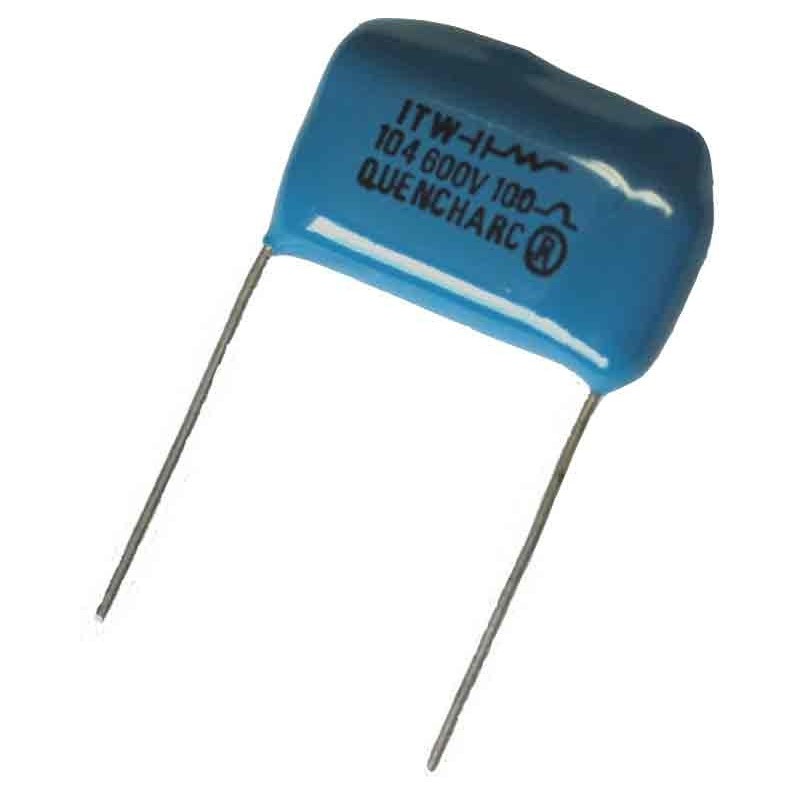

100-Ohm 250Vac 600Vdc Snubber

Reference 0804-0147-0000

Brand ITW PAKTRON

Capacitance 0.1 uF
Capacitance Tolerance +/- 20%
1/2 Watt
Resistor Tolerance +/- 10%
Operating Ambient Temperature -67°F ~ 185°F
Lead Spacing 20.8mm
Constructed of Metallized Polyester In Series With A Carbon Composition Resistor

$9.00

Quantity

In stock: 6 Items

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description

This Capacitor Acts As A Snubber When Connected To The Control Coil Of A Power Switching Device. The Inductive Nature Of Control Coils Can Cause Feed Back Voltage To The Control Voltage Source. Electronic Devices Such As Process / Temperature Controllers Can Be Damaged From Voltage Feed Back. The Snubber Can Provide A Short Term Current Path To Safely Discharge Any Electrical Noise Around The Power Switching Device.

Product Details

Reference 0804-0147-0000

EAN13 0

In stock 6 Items

Attachments

Download

ITW Paktron Literature

Download (2.61KB)
