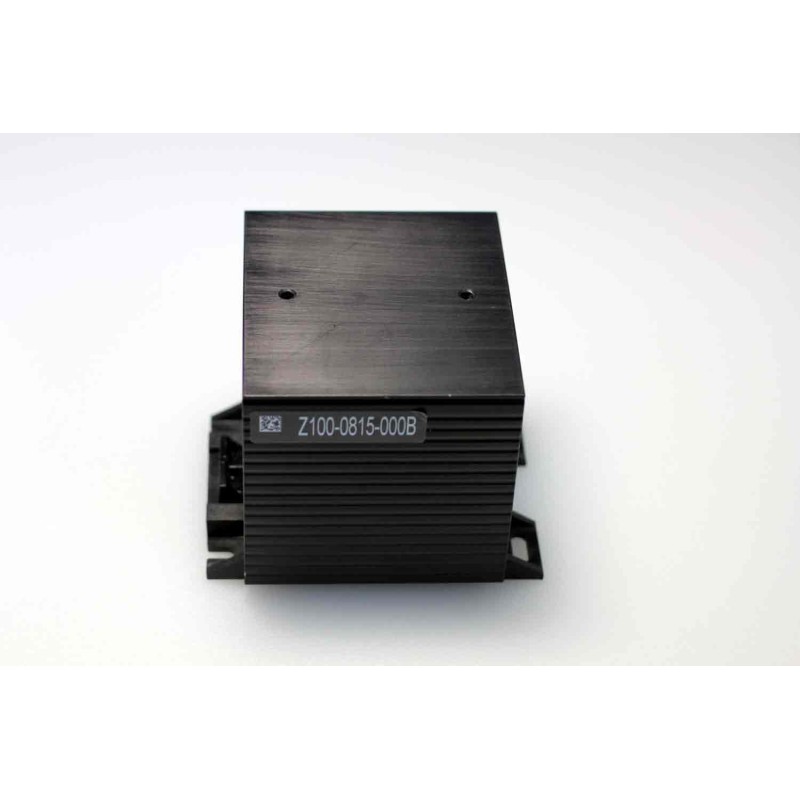

Z100-0815-000B 35A Heat Sink

Reference Z100-0815-000B

Brand Watlow Electric Mfg.

Aluminum Body With A Black Anodized Finish
Rated At 1.1°C/W
Designed For Use With Hockey Puck Style Solid State Relays
Width 3.2"(81mm) x 3.7"(94mm) Long x 2.9"(74mm) High
Din Rail Mounted OR Base Mounted
Relay Mounting Holes Are 8/32 Threads
Removes Heat Away From Solid State Relays

$44.90

Quantity

Last items in stock

In stock: 3 Items

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description

WATLOW | Z100-0815-000B 35A Heat Sink

The Following Watlow SSRs Are Appropriate For This Heat Sink:

SSR-240-10A-DC1
SSR-240-10A-AC1
SSR-240-25A-DC1
SSR-240-25A-AC1
SSR-480-25A-DC1
SSR-480-25A-AC1

Product Details

Reference Z100-0815-000B

EAN13 0

In stock 3 Items

Attachments

Download

Watlow Solid State Relays Lit.

Download (2.61KB)
