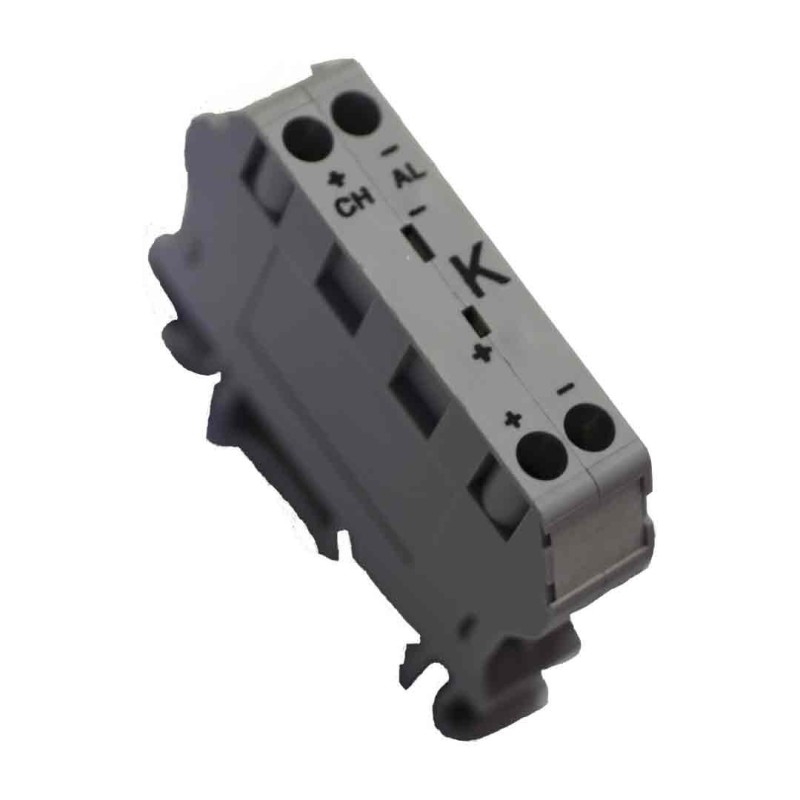

K Thermocouple Terminal Block

Reference TCB-K

Brand Private Label

DIN Rail Mountable (32 mm or 35 mm)
Identified With Calibration and “+” , “–” Connections
Screw Type Terminal for Up To 12awg Wire Connections
Fully Enclosed—No End Plates Required
Write-On Terminal Markers
10.7mm Wide X 51mm Long
Temperature Range -40°c ~ +85°c

$38.27

Quantity

In stock: 10 Items

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description
Product Details

Description

This DIN-rail Mounted 'K' Thermocouple Terminal Block Incorporates An Embedded Female Thermocouple Connector For Reading Process Temperatures At The Terminal Block. This Feature Can Save Time And Money While Troubleshooting, Measuring, Calibrating, Auditing, Or Installing A Thermocouple Control Loop.

Product Details

Reference TCB-K

EAN13 0

In stock 10 Items
