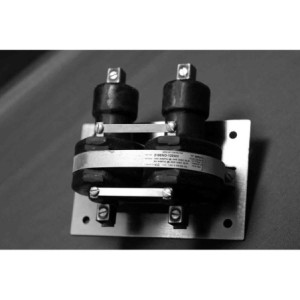

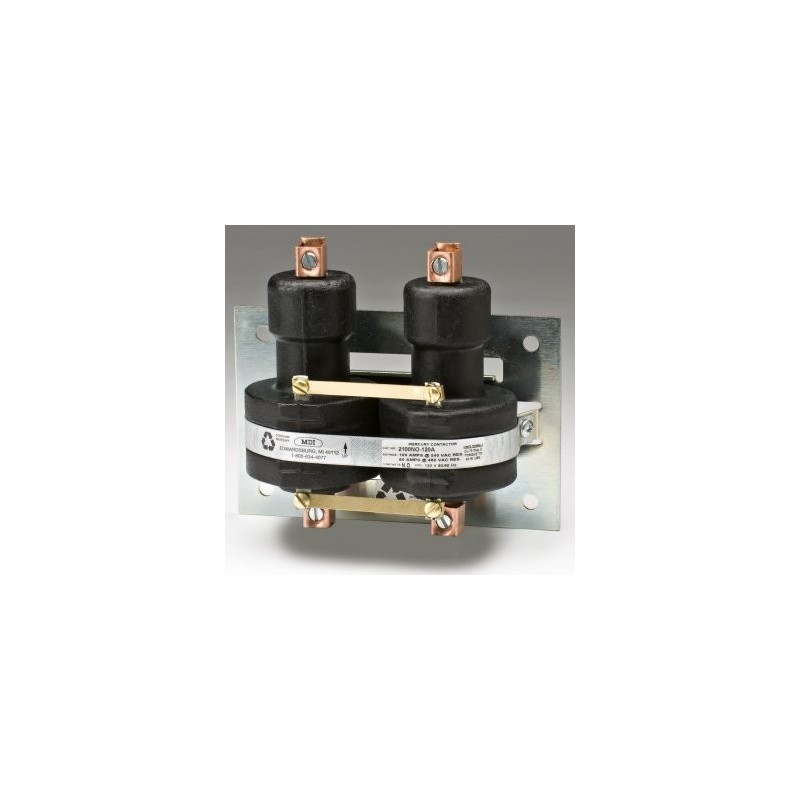

100A 2P 120Vac Mercury Contactor

Reference 2100NO-120A

Brand Mercury Displacement Industries

Coil Rating Per Pole 16.4-VA 380Ω (Coils Are In Parrallel)
Contacts Normally Open Rated 100A@240V 80A@480V
Amperage Rating Based On Resistive Load
Contact Make Time 50 Milliseconds
Contact Break Time 80 Milliseconds
Temperature Range -35°c To +85°c
Dielectric Withstanding UpTo 2500Vac RMS

$324.18

Quantity

Last items in stock

In stock: 3 Items

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description

Contacts Are Within A Hermetically Sealed Steel Body
Arcing Is In A Gaseous Atmosphere
Only One Moving Part (The Plunger)
Epoxy Encapsulated
Coil Terminals: #6 Binding Head Screws
Load Terminals: Pressure Connectors Accept #2 to #12 American Wire Gauge
UL Listing: File #E62767
C.S.A.: File #LR41198
1-Year Warranty
2100NO-120A Made In The USA By Mercury Displacement Industries, Inc.

Product Details

Reference 2100NO-120A

EAN13 0

In stock 3 Items

Attachments

Download

MDI Information About Relays

Download (2.61KB)
