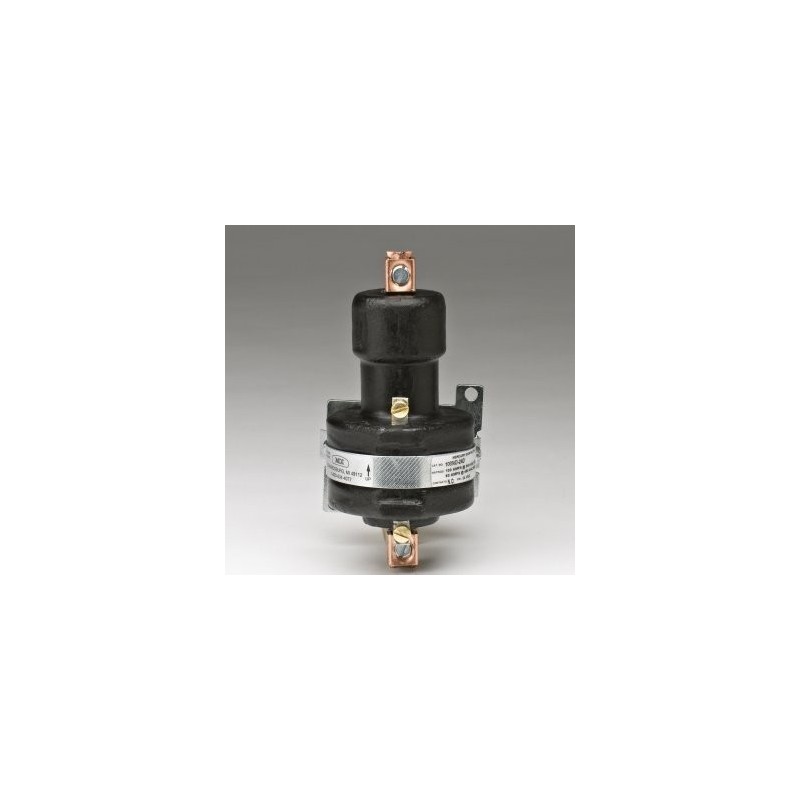

100A 1P 120Vac Mercury Contactor 480V

Reference CFC-718

Brand Mercury Displacement Industries

Coil Rating 16.4-VA 380Ω
Contacts Normally Open Rated 100A@240/480V
Amperage Rating Based On Resistive Load
Contact Make Time 50 Milliseconds
Contact Break Time 80 Milliseconds
Temperature Range -35°c To +85°c
Dielectric Withstanding UpTo 2500Vac RMS
Direct Replacement For Watlow HG100-1AC1-0000

$201.15

Quantity

Out-of-Stock

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description

Contacts Are Within A Hermetically Sealed Steel Body
Arcing Is In A Gaseous Atmosphere
Only One Moving Part (The Plunger)
Epoxy Encapsulated
Coil Terminals: #6 Binding Head Screws
Load Terminals: Pressure Connectors Accept #2 to #12 American Wire Gauge
UL Listing: File #E62767
C.S.A.: File #LR41198
1-Year Warranty
S100NO-120A Made In The USA By Mercury Displacement Industries, Inc.

Product Details

Reference CFC-718

EAN13 0

Attachments

Download

MDI Information About Relays

Download (2.61KB)
