100A 3P 24Vdc Mercury Contactor 480V
  • 100A 3P 24Vdc Mercury Contactor 480V
  • 100A 3P 24Vdc Mercury Contactor 480V

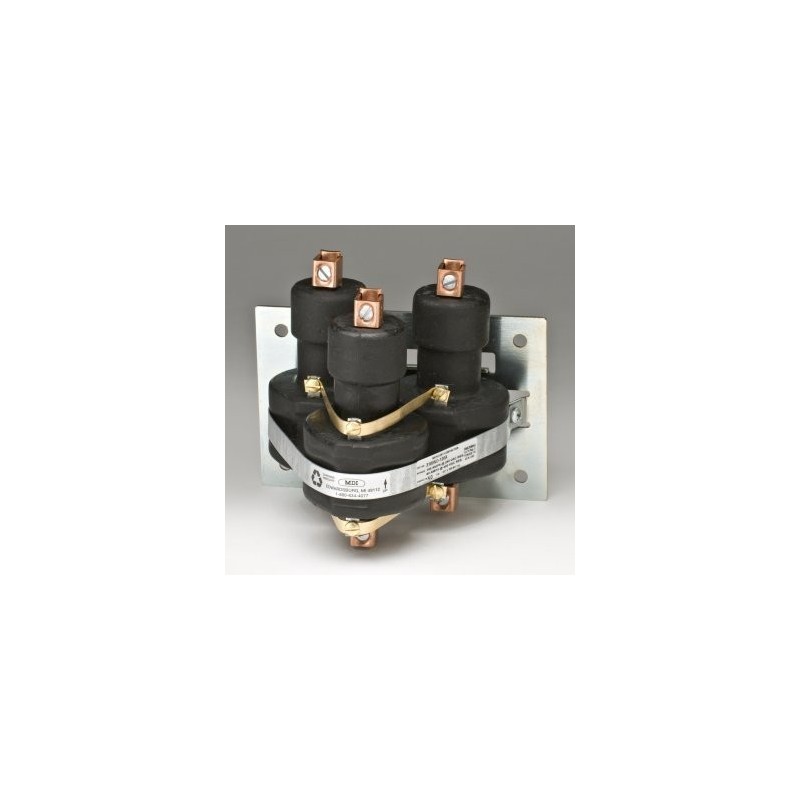

100A 3P 24Vdc Mercury Contactor 480V

CFC3-721
  • Coil Rating Per Pole 8.9-VA 65Ω (Coils Are In Parrallel)
  • Contacts Normally Open Rated 100A@240/480V
  • Amperage Rating Based On Resistive Load
  • Contact Make Time 50 Milliseconds
  • Contact Break Time 80 Milliseconds
  • Temperature Range -35°c To +85°c
  • Dielectric Withstanding UpTo 2500Vac RMS
  • Direct Replacement For Watlow HG100-6AC3-0000
$605.43
Quantity
Last items in stock
3 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description
  • Contacts Are Within A Hermetically Sealed Steel Body
  • Arcing Is In A Gaseous Atmosphere
  • Only One Moving Part (The Plunger)
  • Epoxy Encapsulated
  • Coil Terminals:  #6 Binding Head Screws
  • Load Terminals: Pressure Connectors Accept #2 to #12 American Wire Gauge
  • UL Listing:  File #E62767
  • C.S.A.:  File #LR41198
  • 1-Year Warranty
  • S3100NO-24D Made In The USA By Mercury Displacement Industries, Inc.
Product Details
CFC3-721
0
3 Items
