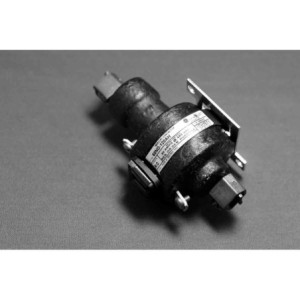

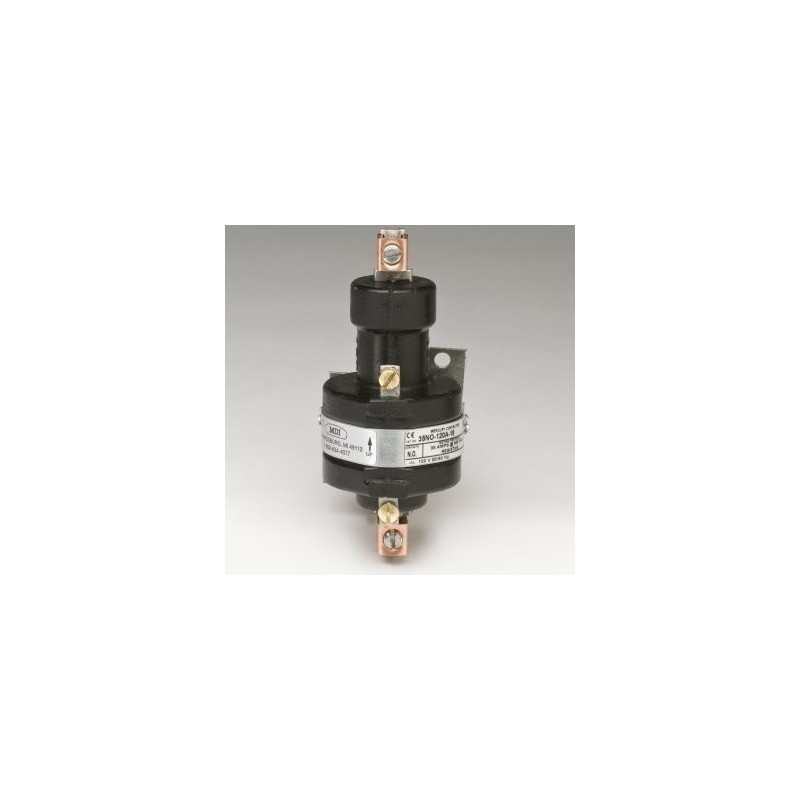

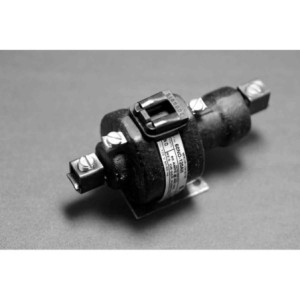

60A 1P 120Vac Mercury Contactor

Reference 1060APS120AC

Brand Mercury Displacement Industries

Coil Rating 5.8-VA 1.25kΩ
Contacts Normally Open Rated 60A@480V
Amperage Rating Based On Resistive Load
Contact Make Time 50 Milliseconds
Contact Break Time 80 Milliseconds
Temperature Range -35°c To +85°c
Dielectric Withstanding UpTo 2500Vac RMS
Direct Replacement For Watlow HG60-1PD1-0000

$80.35

Quantity

Last items in stock

In stock: 3 Items

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description

Contacts Are Within A Hermetically Sealed Steel Body
Arcing Is In A Gaseous Atmosphere
Only One Moving Part (The Plunger)
Epoxy Encapsulated
Coil Terminals: #6 Binding Head Screws
Load Terminals: Pressure Connectors for #2 Thru #8 American Wire Gauge
UL Listing: File #E62767
C.S.A.: File #LR41198
1-Year Warranty
60NO-120AH-18 Made In The USA By Mercury Displacement Industries, Inc.

CONSTRUCTION & ACTION: The load terminals are isolated from each other by a glass hermetic seal. "The plunger assembly" which includes a ceramic insulator, a magnetic sleeve and related parts, floats in a pool of mercury. When powered, the coil creates a magnetic field pulling the plunger assembly down into the mercury pool which displaces the mercury to move up making contact with the electrode, thereby closing the circuit between the line terminal on the top and the load terminal on the bottom which is connected to the stainless steel can.

Product Details

Reference 1060APS120AC

EAN13 0

In stock 3 Items

Attachments

Download

MDI 60NO 120A Spec Sheet

Download (2.61KB)

MDI Information About Relays

Download (2.61KB)
