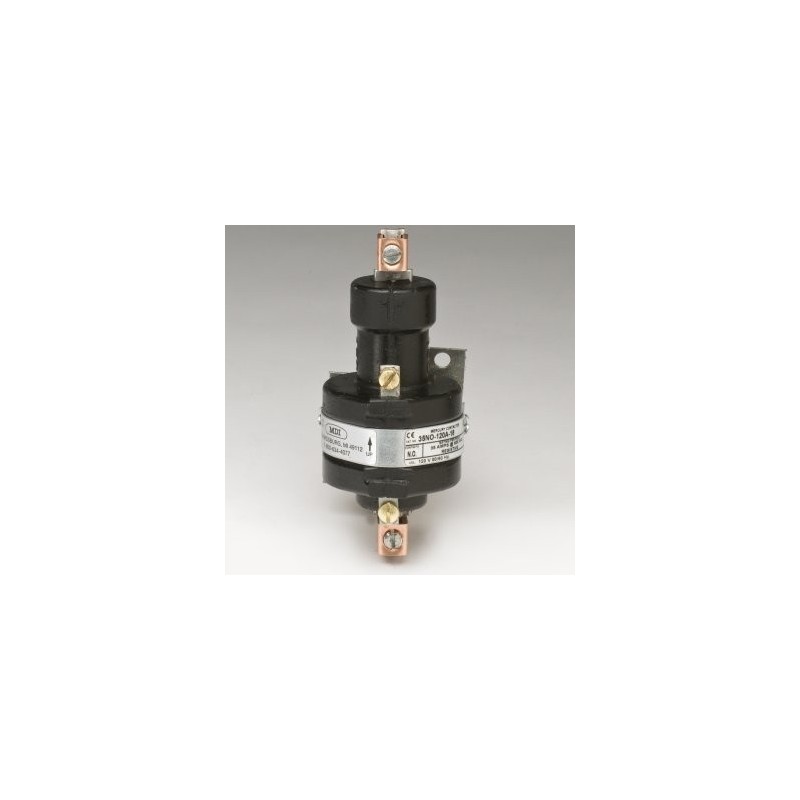

35A 1P 24Vdc Mercury Contactor

Reference 1035A24DC

Brand Mercury Displacement Industries

Coil Rating 3.3-VA 176Ω
Contacts Normally Open Rated 35A@600V
Amperage Rating Based On Resistive Load
Contact Make Time 50 Milliseconds
Contact Break Time 80 Milliseconds
Temperature Range -35°c To +85°c
Dielectric Withstanding UpTo 2500Vac RMS
Direct Replacement For Watlow HG35-6LD1-0000

$51.20

Quantity

Last items in stock

In stock: 3 Items

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description

Contacts Are Within A Hermetically Sealed Steel Body
Arcing Is In A Gaseous Atmosphere
Only One Moving Part (The Plunger)
Epoxy Encapsulated
Coil Terminals: #6 Binding Head Screws
Load Terminals: Pressure Connectors for #4 Thru #14 American Wire Gauge
UL Listing: File #E62767
C.S.A.: File #LR41198
1-Year Warranty
35NO-24DH Made In The USA By Mercury Displacement Industries, Inc.

CONSTRUCTION & ACTION: The load terminals are isolated from each other by a glass hermetic seal. "The plunger assembly" which includes a ceramic insulator, a magnetic sleeve and related parts, floats in a pool of mercury. When powered, the coil creates a magnetic field pulling the plunger assembly down into the mercury pool which displaces the mercury to move up making contact with the electrode, thereby closing the circuit between the line terminal on the top and the load terminal on the bottom which is connected to the stainless steel can.

Product Details

Reference 1035A24DC

EAN13 0

In stock 3 Items

Attachments

Download

MDI 35NO 24D Spec Sheet

Download (2.61KB)

MDI Information About Relays

Download (2.61KB)

4 other products in the same category:

Reference: 2100NO-120A

Brand: Mercury Displacement Industries

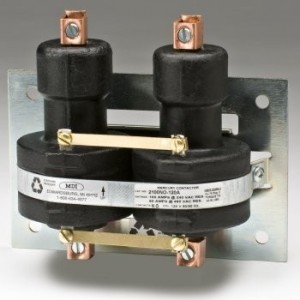

100A 2P 120Vac Mercury Contactor
