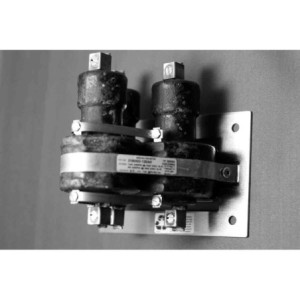

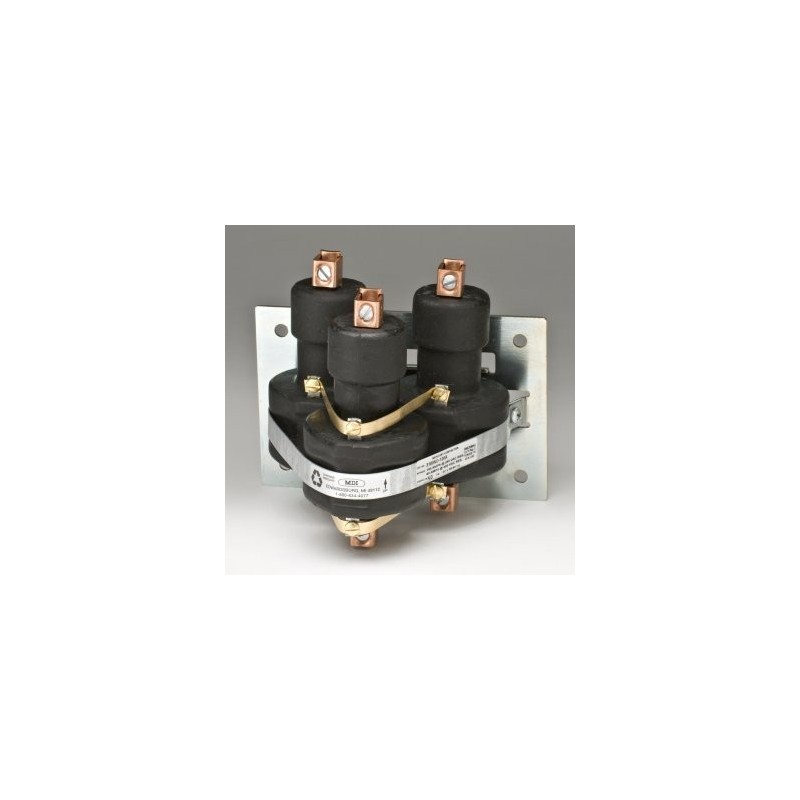

100A 3P 120Vac Mercury Contactor
  • 100A 3P 120Vac Mercury Contactor
  • 100A 3P 120Vac Mercury Contactor
  • 100A 3P 120Vac Mercury Contactor
  • 100A 3P 120Vac Mercury Contactor

100A 3P 120Vac Mercury Contactor

3100NO-120A
  • Coil Rating Per Pole 16.4-VA 380Ω (Coils Are In Parrallel)
  • Contacts Normally Open Rated 100A@240v 80A@480v
  • Amperage Rating Based On Resistive Load
  • Contact Make Time 50 Milliseconds
  • Contact Break Time 80 Milliseconds
  • Temperature Range -35°c To +85°c
  • Dielectric Withstanding UpTo 2500Vac RMS
$485.43
Quantity
Last items in stock
2 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description
  • Contacts Are Within A Hermetically Sealed Steel Body
  • Arcing Is In A Gaseous Atmosphere
  • Only One Moving Part (The Plunger)
  • Epoxy Encapsulated
  • Coil Terminals:  #6 Binding Head Screws
  • Load Terminals: Pressure Connectors Accept #2 to #12 American Wire Gauge
  • UL Listing:  File #E62767
  • C.S.A.:  File #LR41198
  • 1-Year Warranty
  • 3100NO-120A Made In The USA By Mercury Displacement Industries, Inc.
