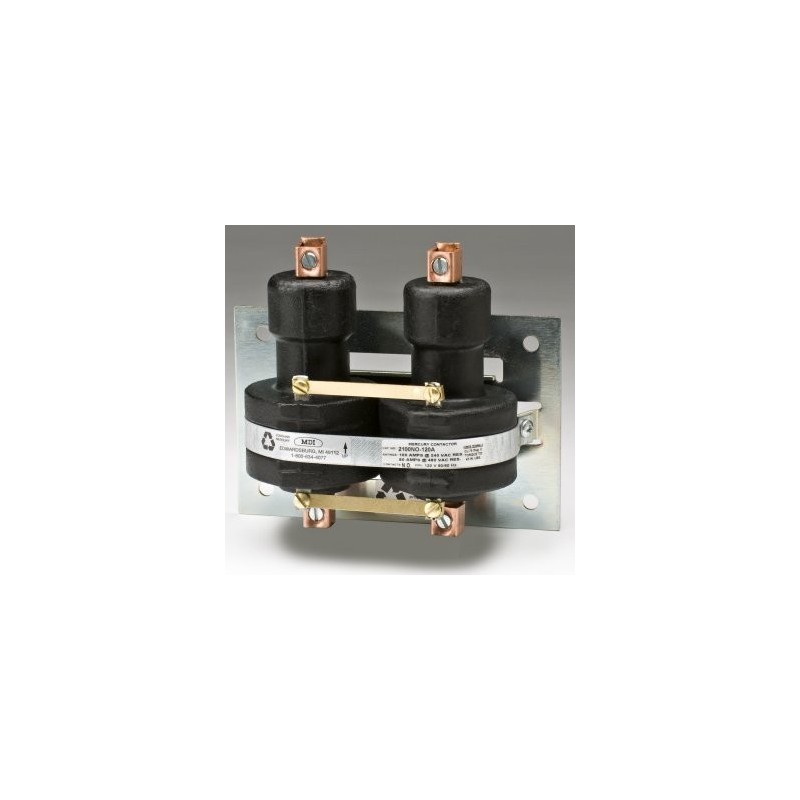

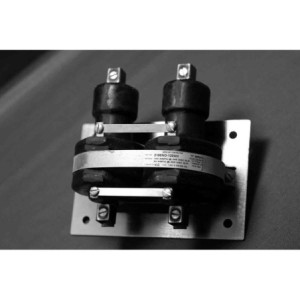

100A 2P 24Vdc Mercury Contactor

Reference 2100NO-24D

Brand Mercury Displacement Industries

Coil Rating Per Pole 8.9-VA 65Ω (Coils Are In Parrallel)
Contacts Normally Open Rated 100A@240V 80A@480V
Amperage Rating Based On Resistive Load
Contact Make Time 50 Milliseconds
Contact Break Time 80 Milliseconds
Temperature Range -35°c To +85°c
Dielectric Withstanding UpTo 2500Vac RMS

$324.18

Quantity

Last items in stock

In stock: 3 Items

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description

Contacts Are Within A Hermetically Sealed Steel Body
Arcing Is In A Gaseous Atmosphere
Only One Moving Part (The Plunger)
Epoxy Encapsulated
Coil Terminals: #6 Binding Head Screws
Load Terminals: Pressure Connectors Accept #2 to #12 American Wire Gauge
UL Listing: File #E62767
C.S.A.: File #LR41198
1-Year Warranty
2100NO-24DH-18 Made In The USA By Mercury Displacement Industries, Inc.

CONSTRUCTION & ACTION: The load terminals are isolated from each other by a glass hermetic seal. "The plunger assembly" which includes a ceramic insulator, a magnetic sleeve and related parts, floats in a pool of mercury. When powered, the coil creates a magnetic field pulling the plunger assembly down into the mercury pool which displaces the mercury to move up making contact with the electrode, thereby closing the circuit between the line terminal on the top and the load terminal on the bottom which is connected to the stainless steel can.

Product Details

Reference 2100NO-24D

EAN13 0

In stock 3 Items

Attachments

Download

MDI 2100NO 24D Spec Sheet

Download (2.61KB)

MDI Information About Relays

Download (2.61KB)
