30A 1P 24VDC Mercury Contactor
  • 30A 1P 24VDC Mercury Contactor
  • 30A 1P 24VDC Mercury Contactor

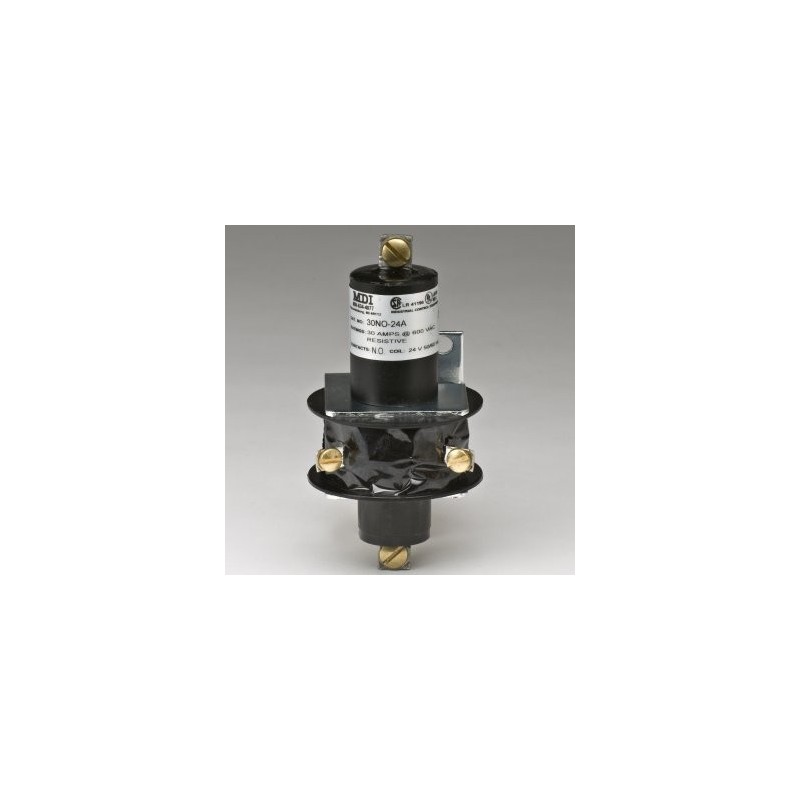

30A 1P 24Vdc Mercury Contactor

BF7046
  • Coil Rating 133mA 3.2Va 180-Ω
  • Contacts Normally Open Rated 30A@600V
  • Amperage Rating Based On Resistive Load
  • Contact Make Time 50 Milliseconds
  • Contact Break Time 80 Milliseconds
  • Temperature Range -35°c To +85°c
  • Dielectric Withstanding UpTo 2500Vac RMS
  • Direct Replacement For Watlow HG30-6KD1-0000
$45.60
Quantity
Last items in stock
2 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description
  • Contacts Are Within A Hermetically Sealed Steel Body
  • Arcing Is In A Gaseous Atmosphere
  • Only One Moving Part (The Plunger)
  • Epoxy Encapsulated
  • Coil Terminals:  #6 Binding Head Screws
  • Load Terminals:  #8 Binding Head Screws
  • UL Listing:  File #E62767
  • C.S.A.:  File #LR41198
  • 1-Year Warranty
  • 30NO-24D Made In The USA By Mercury Displacement Industries, Inc.
Product Details
BF7046
0
2 Items
