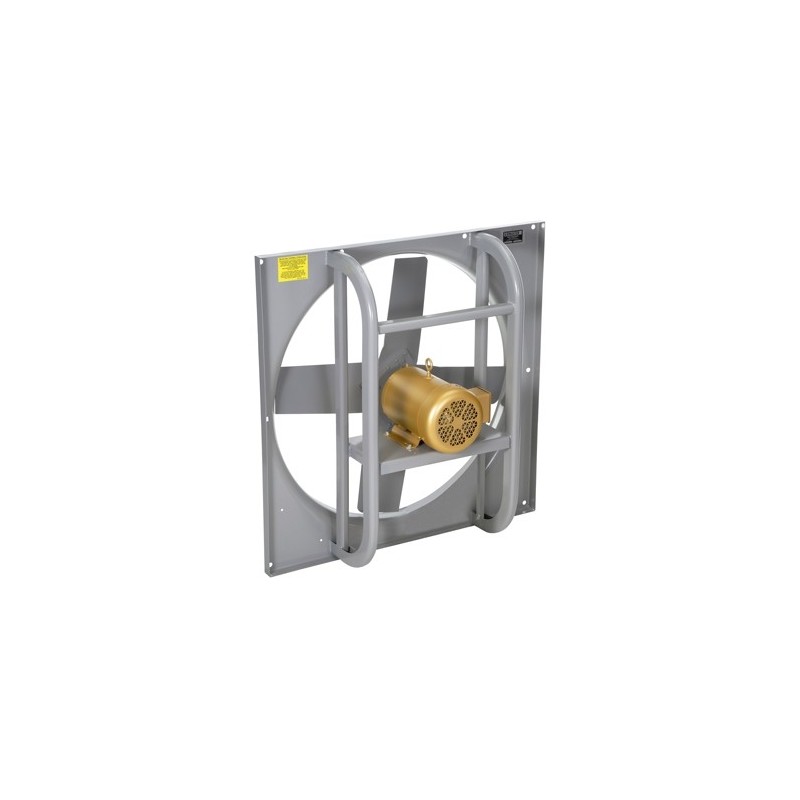

H24VEX76-2 Airmaster Fan
  • H24VEX76-2 Airmaster Fan

24" Propeller 115/230v 1-ph 30"sq 1-hp explosion proof exhaust fan

H24VEX76-2
  • Airmaster Fan Model H24VEX76-2
  • 1-HP 115/230V 1-PH 1750-RPM Explosion Proof Motor
  • 24" Spark Resistant Aluminum Propeller
  • 7820-CFM @0" Static Pressure, 7690-CFM @1/8" Static Pressure
  • 7450-CFM @1/4" Static Pressure
  • Perceived Pressure Sound 35.4/Sones @5'
  • 30"x30"sq.x12"deep
  • Can Be Shipped UPS Ground
  • Weight 65/lbs

3D picture

$2,651.00
Quantity
4 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description
  • 1 Year Warranty
  • High Pressure Direct Drive
  • Industrial Duty Explosion Proof
  • Class I, Group D, Class II, Groups E, F & G
  • Do NOT Use Variable Speed Control On This Fan

Made In The USA

Note: Airmaster ships 3 days after receipt of order.

Certifications, Features & Specifications

Learn more about high pressure explosion proof fans certifications, features, specifications and more.

learn more

Product Details
H24VEX76-2
4 Items

Specific References

UPC
783429253454
