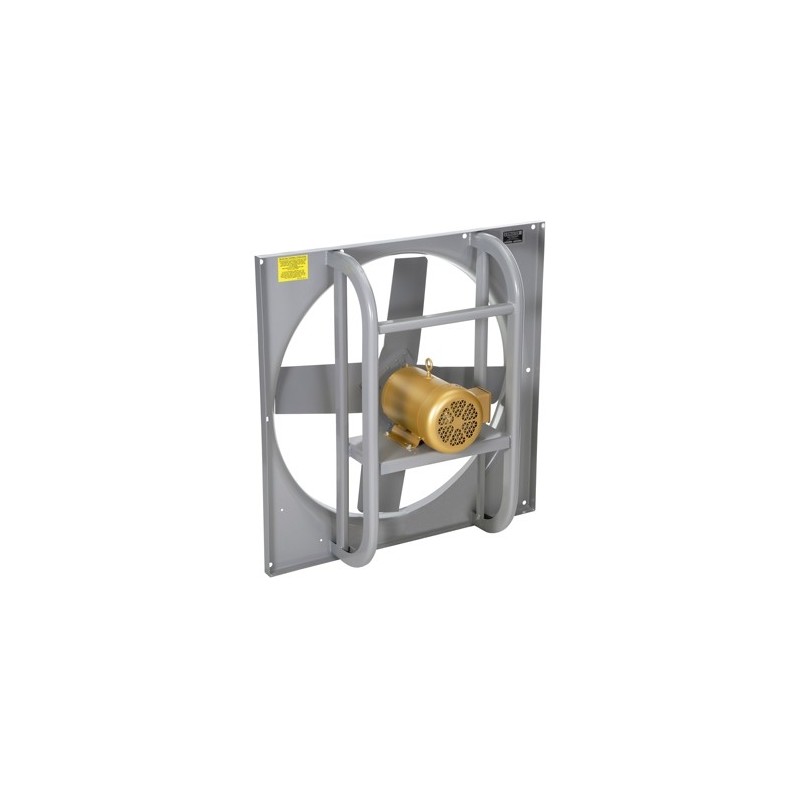

H30VEX836-3 Airmaster explosion proof exhaust fan
  • H30VEX836-3 Airmaster explosion proof exhaust fan

30" Propeller 230/460v 3-ph 36"sq 3-hp explosion proof exhaust fan

H30VEX836-3
  • Airmaster Fan Model H30VEX836-3
  • 3-HP 230/460V 3-PH 1750-RPM Explosion Proof Motor
  • 30" Spark Resistant Aluminum Propeller
  • 16000-CFM @0" Static Pressure, 15350-CFM @1/8" Static Pressure
  • 14700-CFM @1/4" Static Pressure
  • Perceived Pressure Sound 60/Sones @5'
  • 36"x36"sq.x15"deep
  • Weight 205/lbs

3D picture

$5,002.00
Quantity
4 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description
  • 1 Year Warranty
  • High Pressure Direct Drive
  • Industrial Duty Explosion Proof
  • Class I, Group D, Class II, Groups E, F & G
  • Do NOT Use Variable Speed Control On This Fan

Made In The USA

Note: Airmaster ships 3 days after receipt of order.

Certifications, Features & Specifications

Learn more about high pressure explosion proof fans certifications, features, specifications and more.

learn more

Product Details
H30VEX836-3
4 Items

Specific References

UPC
783429253805
