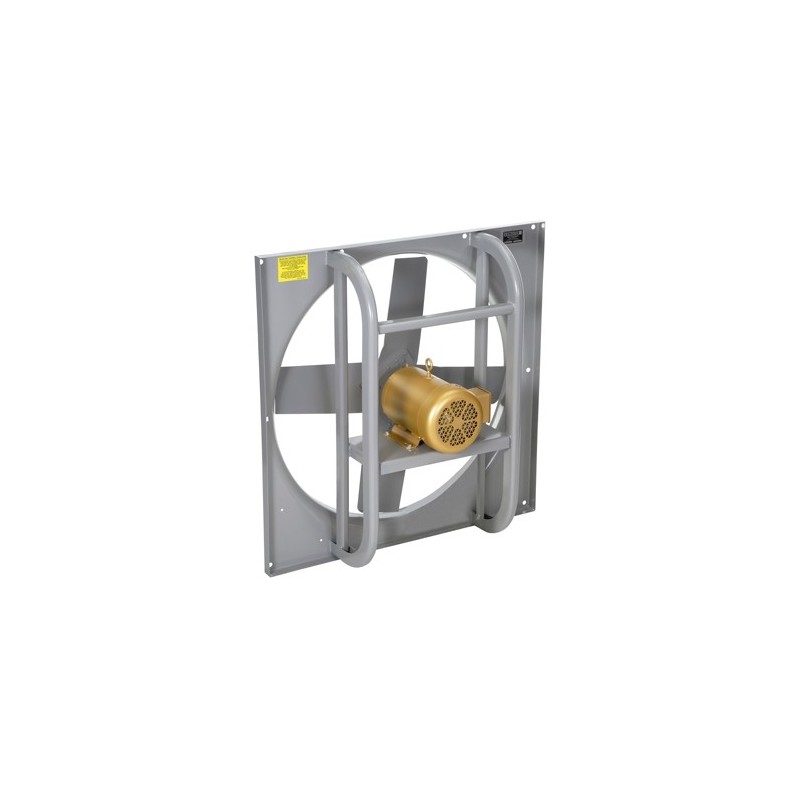

H48VEX836-2 Airmaster explosion proof exhaust fan
  • H48VEX836-2 Airmaster explosion proof exhaust fan

48" Propeller 230/460v 3-ph 54"sq 7-1/5-hp explosion proof exhaust fan

H48VEX836-2
  • Airmaster Fan Model H48VEX836-2
  • 7-1/2-HP 230/460V 3-PH 1150-RPM Explosion Proof Motor
  • 48" Spark Resistant Aluminum Propeller
  • 37000-CFM @0" Static Pressure, 35000-CFM @1/8" Static Pressure
  • 32800-CFM @1/4" Static Pressure
  • Perceived Pressure Sound 70.2/Sones @5'
  • 54"x54"sq.x22-1/2"deep height 360/lbs

3D picture

$10,038.00
Quantity
Last items in stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description
  • 1 Year Warranty
  • High Pressure Direct Drive
  • Industrial Duty Explosion Proof
  • Class I, Group D, Class II, Groups E, F & G
  • Do NOT Use Variable Speed Control On This Fan

Made In The USA

Note: Airmaster ships 3 days after receipt of order

Certifications, Features & Specifications

Learn more about high pressure explosion proof fans certifications, features, specifications and more.

learn more

Product Details
H48VEX836-2

Specific References

UPC
783429254604
4 other products in the same category:
H36VEX836-2 Airmaster explosion proof exhaust fan

Reference: H36VEX836-2

Brand: Airmaster Fan Co.

36" Propeller 230/460v 3-ph 42"sq 5-hp explosion proof exhaust fan

Airmaster Fan Model H36VEX836-2 5-HP 230/460V 3-PH 1750-RPM Explosion Proof Motor 36" Spark Resistant Aluminum Propeller 23000-CFM @0" Static Pressure, 22150-CFM @1/8" Static Pressure 21100-CFM @1/4" Static Pressure Perceived Pressure Sound 76.5/Sones @5' 42"x42"sq.x15-3/4"deep height 225/lbs 3D picture
$6,318.00
More 36" Propeller 230/460v 3-ph 42"sq 5-hp explosion proof exhaust fan
In stock

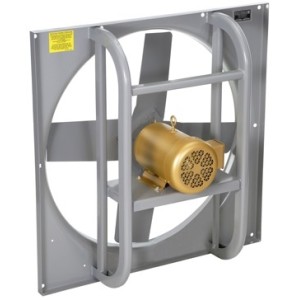

H30VEX76-1 airmaster explosion proof exhaust fan

Reference: H30VEX76-1

Brand: Airmaster Fan Co.

30" Propeller 115/230v 1-ph 36"sq 1-hp explosion proof exhaust fan

Airmaster Fan Model H30VEX76-1 1-HP 115/230V 1-PH 1150-RPM Explosion Proof Motor 30" Spark Resistant Aluminum Propeller 10440-CFM @0" Static Pressure, 9750-CFM @1/8" Static Pressure 8750-CFM @1/4" Static Pressure Perceived Pressure Sound 29/Sones @5' 36"x36"sq.x15"deep Weight 110/lbs 3D picture
$6,242.00
More 30" Propeller 115/230v 1-ph 36"sq 1-hp explosion proof exhaust fan
Last items in stock
H18VEX76-1 Airmaster Fan

Reference: H18VEX76-1

Brand: Airmaster Fan Co.

18" Propeller 115/230v 1-ph 24"sq 1/2-hp explosion proof exhaust fan

Airmaster Fan Model H18VEX76-1 1/2-HP 115/230V 1-PH 1750-RPM Explosion Proof Motor 18" Spark Resistant Aluminum Propeller 3990-CFM @0" Static Pressure, 3780-CFM @1/8" Static Pressure 3480-CFM @1/4" Static Pressure Perceived Pressure Sound 23/Sones @5' 24"x24"sq.x10"deep Can Be Shipped UPS Ground Weight 55/lbs 3D picture
$2,147.00
More 18" Propeller 115/230v 1-ph 24"sq 1/2-hp explosion proof exhaust fan
In stock
H42VEX836-2 Airmaster explosion proof exhaust fan

Reference: H42VEX836-2

Brand: Airmaster Fan Co.

42" Propeller 230/460v 3-ph 48"sq 5-hp explosion proof exhaust fan

Airmaster Fan Model H42VEX836-2 5-HP 230/460V 3-PH 1150-RPM Explosion Proof Motor 42" Spark Resistant Aluminum Propeller 28970-CFM @0" Static Pressure, 27960-CFM @1/8" Static Pressure 26840-CFM @1/4" Static Pressure Perceived Pressure Sound 62.3/Sones @5' 48"x48"sq.x20"deep height 320/lbs 3D picture
$7,845.00
View details More 42" Propeller 230/460v 3-ph 48"sq 5-hp explosion proof exhaust fan
Last items in stock
