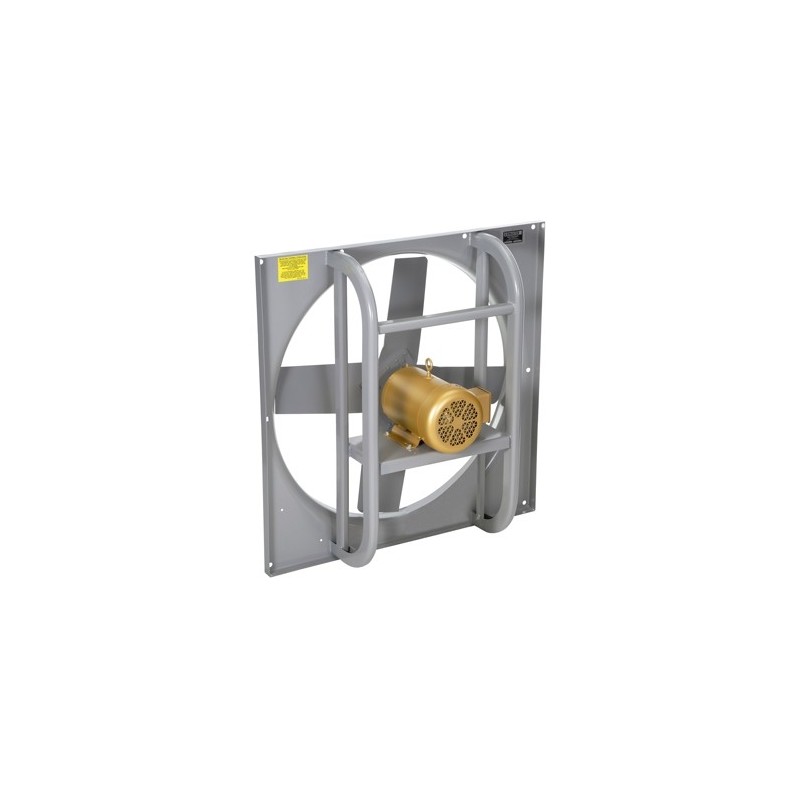

H36VEX836-2 Airmaster explosion proof exhaust fan
  • H36VEX836-2 Airmaster explosion proof exhaust fan

36" Propeller 230/460v 3-ph 42"sq 5-hp explosion proof exhaust fan

H36VEX836-2
  • Airmaster Fan Model H36VEX836-2
  • 5-HP 230/460V 3-PH 1750-RPM Explosion Proof Motor
  • 36" Spark Resistant Aluminum Propeller
  • 23000-CFM @0" Static Pressure, 22150-CFM @1/8" Static Pressure
  • 21100-CFM @1/4" Static Pressure
  • Perceived Pressure Sound 76.5/Sones @5'
  • 42"x42"sq.x15-3/4"deep height 225/lbs

3D picture

$6,318.00
Quantity
4 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description
  • 1 Year Warranty
  • High Pressure Direct Drive
  • Industrial Duty Explosion Proof
  • Class I, Group D, Class II, Groups E, F & G
  • Do NOT Use Variable Speed Control On This Fan

Made In The USA

Note: Airmaster ships 3 days after receipt of order.

Certifications, Features & Specifications

Learn more about high pressure explosion proof fans certifications, features, specifications and more.

learn more

Product Details
H36VEX836-2
4 Items

Specific References

UPC
783429254109
