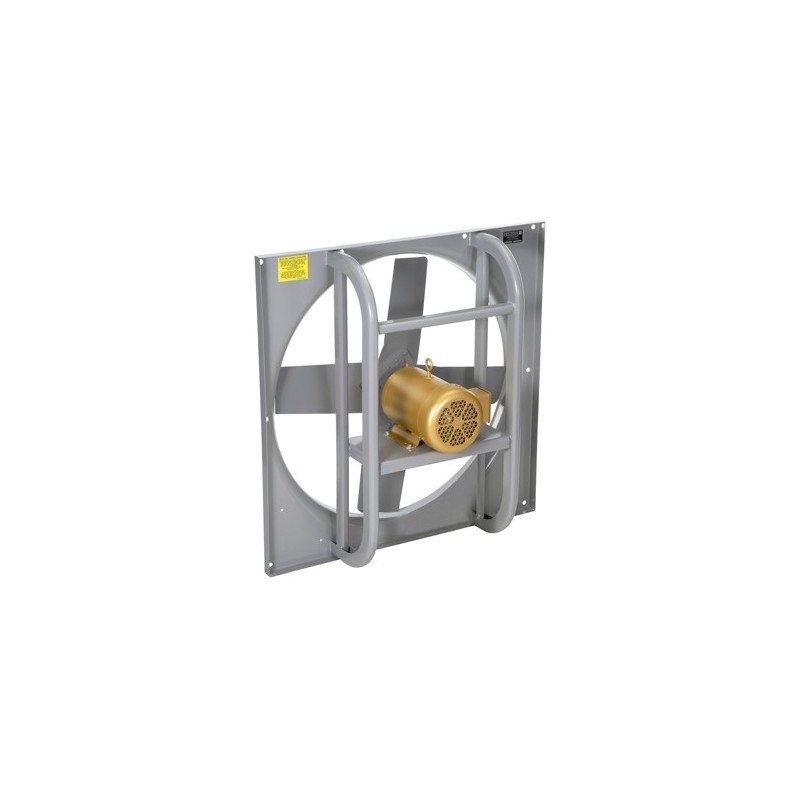

H42VEX836-1 Airmaster explosion proof exhaust fan
  • H42VEX836-1 Airmaster explosion proof exhaust fan

42" Propeller 230/460v 3-ph 48"sq 3-hp explosion proof exhaust fan

H42VEX836-1
  • Airmaster Fan Model H42VEX836-1
  • 3-HP 230/460V 3-PH 1150-RPM Explosion Proof Motor
  • 42" Spark Resistant Aluminum Propeller
  • 24500-CFM @0" Static Pressure, 23150-CFM @1/8" Static Pressure
  • 23000-CFM @1/4" Static Pressure
  • Perceived Pressure Sound 51.3/Sones @5'
  • 48"x48"sq.x20"deep height 275/lbs

3D picture

$6,984.00
Quantity
Last items in stock
2 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description
  • 1 Year Warranty
  • High Pressure Direct Drive
  • Industrial Duty Explosion Proof
  • Class I, Group D, Class II, Groups E, F & G
  • Do NOT Use Variable Speed Control On This Fan

Made In The USA

Note: Airmaster ships 3 days after receipt of order.

Certifications, Features & Specifications

Learn more about high pressure explosion proof fans certifications, features, specifications and more.

learn more

Product Details
H42VEX836-1
2 Items

Specific References

UPC
783429254352
