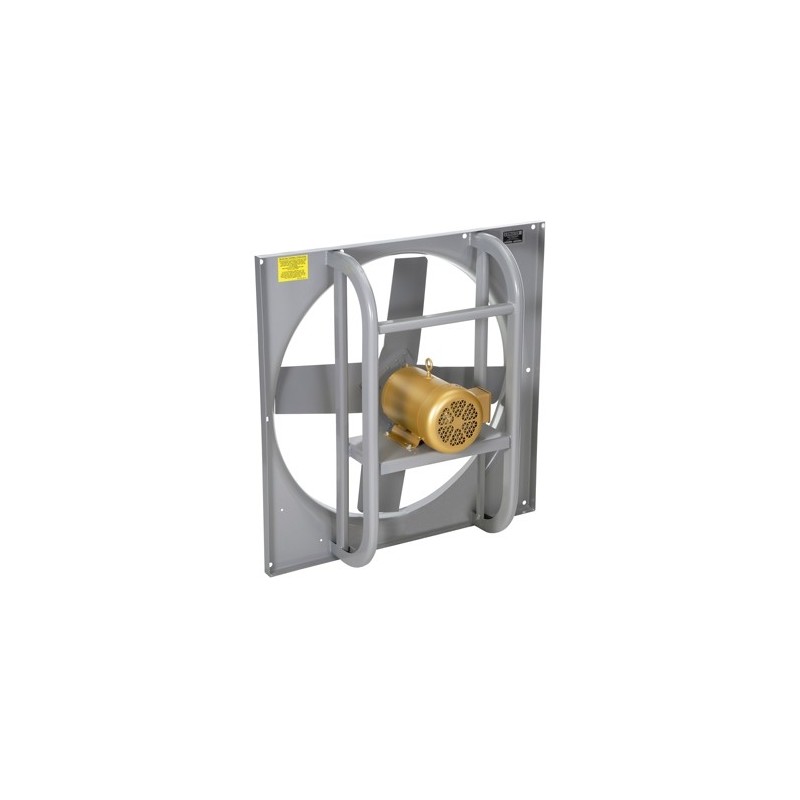

18" Propeller 230/460v 3-ph 24"sq 1/2-hp explosion proof exhaust fan

Reference H18VEX836-1

Brand Airmaster Fan Co.

Airmaster Fan Model H18VEX836-1
1/2-HP 230/460V 3-PH 1750-RPM Explosion Proof Motor
18" Spark Resistant Aluminum Propeller
3990-CFM @0" Static Pressure, 3780-CFM @1/8" Static Pressure
3480-CFM @1/4" Static Pressure
Perceived Pressure Sound 23/Sones @5'
24"x24"sq.x10"deep
Can Be Shipped UPS Ground
Weight 55/lbs

$2,407.00

Quantity

In stock: 4 Items

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description
Product Details

Description

1 Year Warranty
High Pressure Direct Drive
Industrial Duty Explosion Proof
Class I, Group D, Class II, Groups E, F & G
Do NOT Use Variable Speed Control On This Fan

Made In The USA

Note: Airmaster ships 3 days after receipt of order.

Certifications, Features & Specifications

Learn more about high pressure explosion proof fans certifications, features, specifications and more.

Product Details

Reference H18VEX836-1

In stock 4 Items

Specific References

UPC: 783429253300
