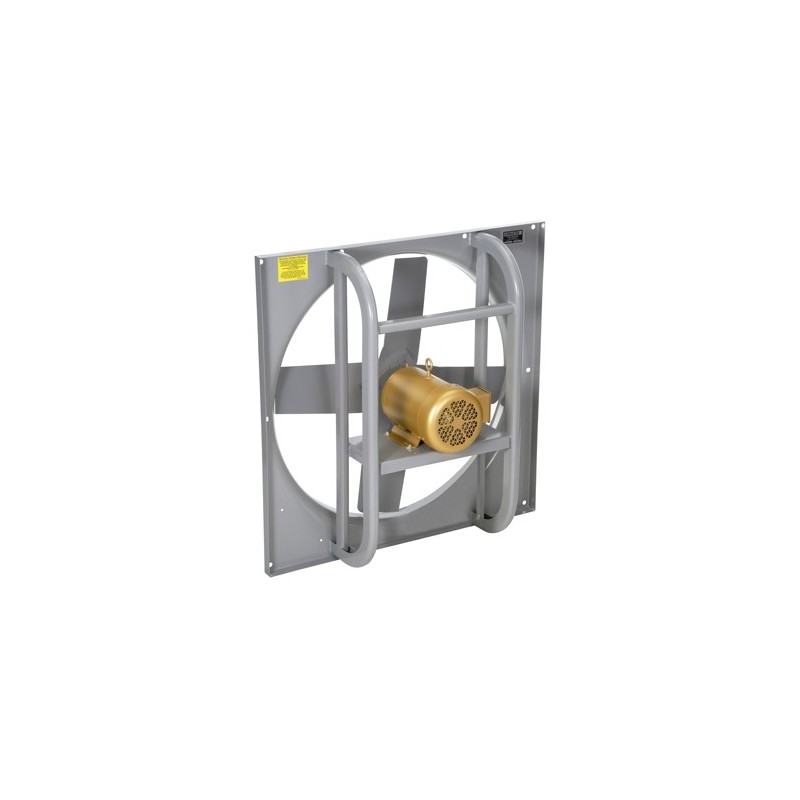

18" Propeller 115/230v 1-ph 24"sq 1/2-hp explosion proof exhaust fan

Reference H18VEX76-1

Brand Airmaster Fan Co.

Airmaster Fan Model H18VEX76-1
1/2-HP 115/230V 1-PH 1750-RPM Explosion Proof Motor
18" Spark Resistant Aluminum Propeller
3990-CFM @0" Static Pressure, 3780-CFM @1/8" Static Pressure
3480-CFM @1/4" Static Pressure
Perceived Pressure Sound 23/Sones @5'
24"x24"sq.x10"deep
Can Be Shipped UPS Ground
Weight 55/lbs

$2,147.00

Quantity

In stock: 4 Items

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description
Product Details

Description

1 Year Warranty
High Pressure Direct Drive
Industrial Duty Explosion Proof
Class I, Group D, Class II, Groups E, F & G
Do NOT Use Variable Speed Control On This Fan

Made In The USA

Note: Airmaster ships 3 days after receipt of order.

Certifications, Features & Specifications

Learn more about high pressure explosion proof fans certifications, features, specifications and more.

Product Details

Reference H18VEX76-1

In stock 4 Items

Specific References

UPC: 783429253256

4 other products in the same category:

H36VEX836-1 Airmaster explosion proof exhaust fan

Reference: H36VEX836-1

Brand: Airmaster Fan Co.

36" Propeller 230/460v 3-ph 42"sq 3-hp explosion proof exhaust fan

Airmaster Fan Model H36VEX836-1 3-HP 230/460V 3-PH 1750-RPM Explosion Proof Motor 36" Spark Resistant Aluminum Propeller 18500-CFM @0" Static Pressure, 17700-CFM @1/8" Static Pressure 15700-CFM @1/4" Static Pressure Perceived Pressure Sound 80/Sones @5' 42"x42"sq.x15-3/4"deep Weight 205/lbs 3D picture

$6,048.70

In stock

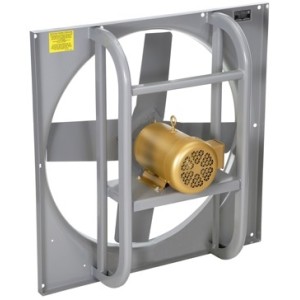

Reference: H24VEX836-2

Brand: Airmaster Fan Co.

24" Propeller 230/460v 3-ph 30"sq 1-hp explosion proof exhaust fan

Airmaster Fan Model H24VEX836-2 1-HP 230/460V 3-PH 1750-RPM Explosion Proof Motor 24" Spark Resistant Aluminum Propeller 7820-CFM @0" Static Pressure, 7690-CFM @1/8" Static Pressure 7450-CFM @1/4" Static Pressure Perceived Pressure Sound 35.4/Sones @5' 30"x30"sq.x12"dee Can Be Shipped UPS Ground Weight 65/lbs 3D picture

$2,768.00

In stock

Reference: H24VEX76-2

Brand: Airmaster Fan Co.

24" Propeller 115/230v 1-ph 30"sq 1-hp explosion proof exhaust fan

Airmaster Fan Model H24VEX76-2 1-HP 115/230V 1-PH 1750-RPM Explosion Proof Motor 24" Spark Resistant Aluminum Propeller 7820-CFM @0" Static Pressure, 7690-CFM @1/8" Static Pressure 7450-CFM @1/4" Static Pressure Perceived Pressure Sound 35.4/Sones @5' 30"x30"sq.x12"deep Can Be Shipped UPS Ground Weight 65/lbs 3D picture

$2,651.00

In stock

Reference: 12EXG16

Brand: Airmaster Fan Co.

12" Propeller 115/230v 1ph 16"sq 1/4-hp explosion proof exhaust fan

Airmaster Fan Model 12EXG16 1/4-HP 115/230V 1-PH 1725-RPM Explosion Proof Motor 12" Spark Resistant Aluminum Propeller 970-CFM @0" S.P., 900-CFM @1/8" S.P., 800-CFM @1/4" S.P. Percieved Pressure Sound 6.7/Sones @5' Can Be Shipped UPS Ground 3D picture

$1,775.00

Last items in stock

A1480 On/Off Thermostat

Bi-Metal Thermostat Adjustable Range 25°F to 345°F 12.5/Amp @120v / 6.25/Amp @240v 1.5"Long Shaft With Knob Dial Manufactured By Bilbee Controls

$48.00

Out-of-Stock

Reference: B200-2-00200

Brand: Watlow Electric Mfg.

A924 On/Off Thermostat

Bi-Metal Thermostat Adjustable Range 100°F to 545°F 12.5/Amp @120v / 6.25/Amp @240v 1.5"Long Shaft With Knob Dial Manufactured By Bilbee Controls

$48.00

Last items in stock

Reference: EASR-MF-20

Brand: Airmaster Fan Co.

Exhaust Shutters For 18" Propeller Fans

Airmaster Fan Model EASR-MF-20 Formally WR18E Aluminum Shutters For Exhaust Fans With 18" Propellers EDP 22785 or EDP 22974 Inside: 20" SQ. Outside: 23" SQ. Required Opening: 20-3/4" Single Panel

$176.00

In stock
