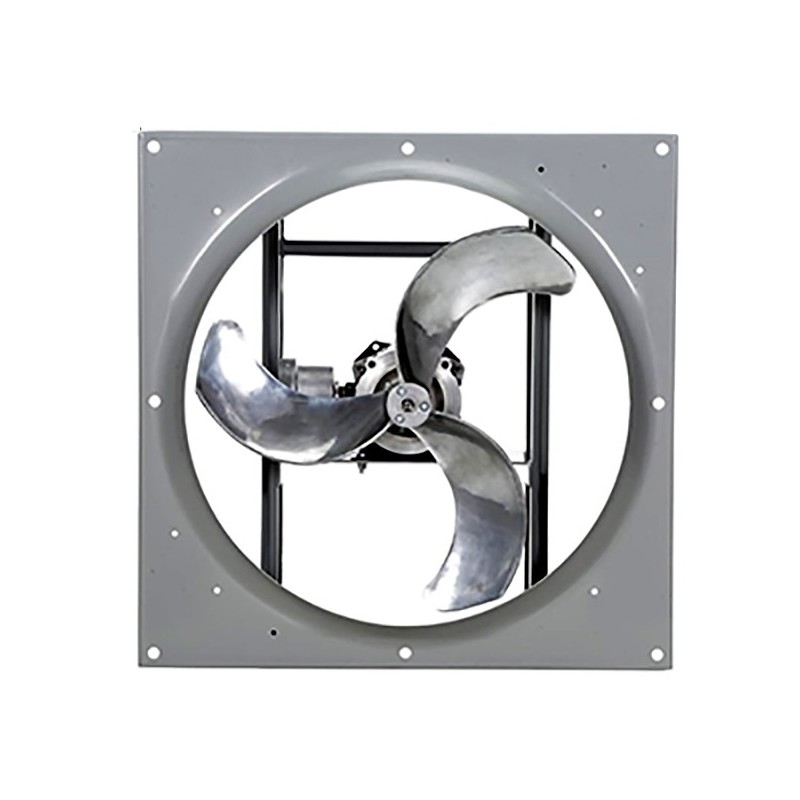

12" Propeller 115/230v 1ph 16"sq 1/4-hp explosion proof exhaust fan

Reference 12EXG16

Brand Airmaster Fan Co.

Airmaster Fan Model 12EXG16
1/4-HP 115/230V 1-PH 1725-RPM Explosion Proof Motor
12" Spark Resistant Aluminum Propeller
970-CFM @0" S.P., 900-CFM @1/8" S.P., 800-CFM @1/4" S.P.
Percieved Pressure Sound 6.7/Sones @5'
Can Be Shipped UPS Ground

$1,775.00

Quantity

Last items in stock

In stock: 2 Items

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description

1 Year Warranty
Low Pressure Direct Drive
Industrial Duty Explosion Proof
Class I, Group D, Class II, Groups F & G
Do NOT Use Variable Speed Control On This Fan
Made In The USA
Note: Airmaster ships 3 days after receipt of order.

Certifications, Features & Specifications

Learn more about low pressure explosion proof fans certifications, features, specifications and more.

Product Details

Reference 12EXG16

In stock 2 Items

Specific References

UPC: 783429243509

Attachments

Download

EXG Exhaust Fans Catalog

Download (2.61KB)

4 other products in the same category:

Reference: H18VEX76-1

Brand: Airmaster Fan Co.

18" Propeller 115/230v 1-ph 24"sq 1/2-hp explosion proof exhaust fan

Airmaster Fan Model H18VEX76-1 1/2-HP 115/230V 1-PH 1750-RPM Explosion Proof Motor 18" Spark Resistant Aluminum Propeller 3990-CFM @0" Static Pressure, 3780-CFM @1/8" Static Pressure 3480-CFM @1/4" Static Pressure Perceived Pressure Sound 23/Sones @5' 24"x24"sq.x10"deep Can Be Shipped UPS Ground Weight 55/lbs 3D picture

$2,147.00

In stock

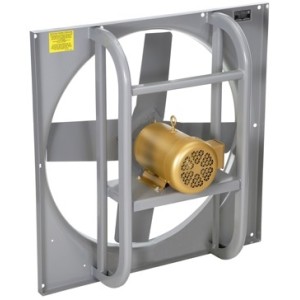

H30VEX836-3 Airmaster explosion proof exhaust fan
