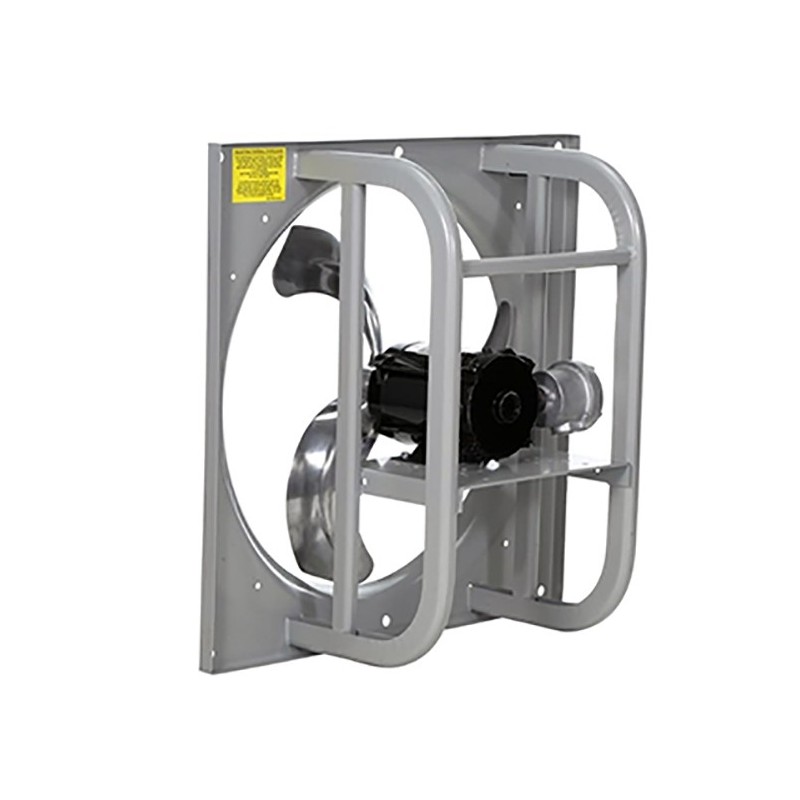

Airmaster 16EXG16
  • Airmaster 16EXG16
  • 16EXG16 Airmaster Exhaust Fan

16" Propeller 115/230v 1ph 22"sq 1/4-hp explosion proof exhaust fan

16EXG16
  • Airmaster Fan Model 16EXG16
  • 1/4-HP 115/230V 1-PH 1725-RPM Explosion Proof Motor
  • 16" Spark Resistant Aluminum Propeller
  • 2950-CFM @0" Static Pressure, 2200-CFM @1/8" Static Pressure
  • 1900-CFM @1/4" Static Pressure
  • Percieved Pressure Sound 10.5/Sones @5'
  • Can Be Shipped UPS Ground

3D picture

$2,054.00
Quantity
Last items in stock
2 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description
  • 1 Year Warranty
  • Low Pressure Direct Drive
  • Industrial Duty Explosion Proof
  • Class I, Group D, Class II, Groups F & G
  • Do NOT Use Variable Speed Control On This Fan
  • Made In The USA
  • Note: Airmaster ships 3 days after receipt of order.

Certifications, Features & Specifications

Learn more about low pressure explosion proof fans certifications, features, specifications and more.

learn more

Product Details
16EXG16
2 Items

Specific References

UPC
783429243608
4 other products in the same category:
12EXG16 Airmaster Fan 12EXG16 Airmaster Fan

Reference: 12EXG16

Brand: Airmaster Fan Co.

12" Propeller 115/230v 1ph 16"sq 1/4-hp explosion proof exhaust fan

Airmaster Fan Model 12EXG16 1/4-HP 115/230V 1-PH 1725-RPM Explosion Proof Motor 12" Spark Resistant Aluminum Propeller 970-CFM @0" S.P., 900-CFM @1/8" S.P., 800-CFM @1/4" S.P. Percieved Pressure Sound 6.7/Sones @5' Can Be Shipped UPS Ground 3D picture
$1,775.00
More 12" Propeller 115/230v 1ph 16"sq 1/4-hp explosion proof exhaust fan
Last items in stock

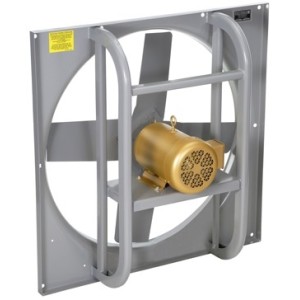

H36VEX836-2 Airmaster explosion proof exhaust fan
