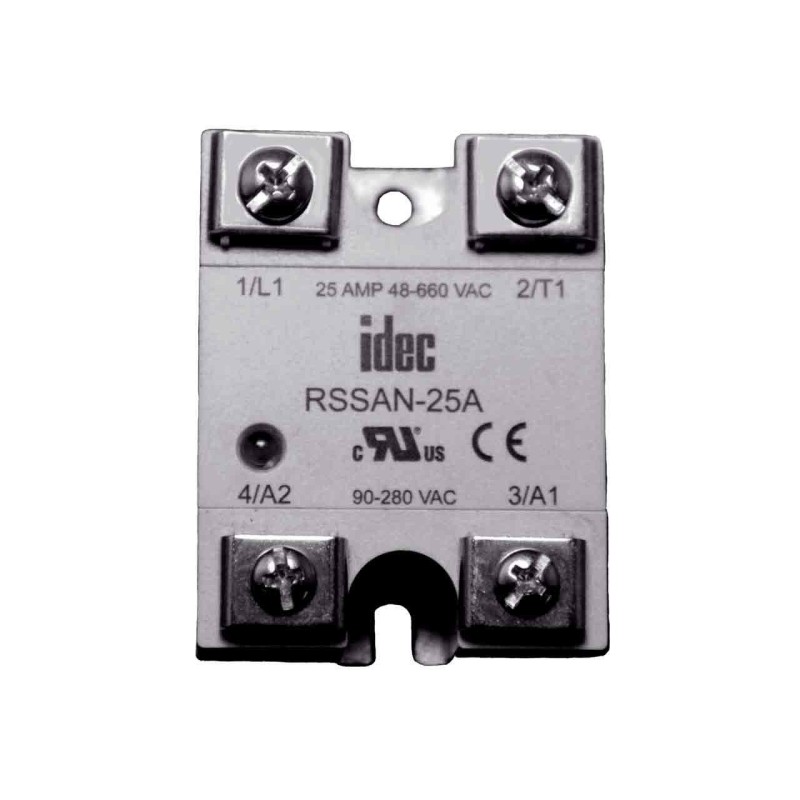

25A SPST N/O 600Vac Power 90~280Vac Control

Reference RSSAN-25A

Brand IDEC

Zero Cross Fire Back to Back SCR Design
Control Voltage 90 ~ 280Vac
Pick Up Voltage 90Vac Drop Out Voltage 10Vac
Line Voltage 48 ~ 650Vac
Snubbed For 0.5 Power Factor At Rated Load
Ambient Operating Temperature -40°F ~ 176°F
Thermal Resistance 1.5°C/W
LED Indicator

$63.48

Quantity

In stock: 10 Items

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description

Burst-Firing (Zero Cross Fire) Turns Power ON and OFF During The AC Cycle At Zero Potential. This Type Of Relay Should Be Protected With Semiconductor Fuses. On A High Fault Short These Type Of Fuses Open In Tenths Of a Millisecond . The Fuse Should Be Sized 125% Of The Current Load Of The Relay. The I²T Rating Of The Fuse Must Be Below The Maximum I²T Rating Of The Relay.

NOTE: (I²T) Rated Current Squared Multiplied by Time (Seconds)

IDEC RSSAN-25A part number

Product Details

Reference RSSAN-25A

In stock 10 Items

Attachments

Download

Idec RSSA Literature

Download (2.61KB)
