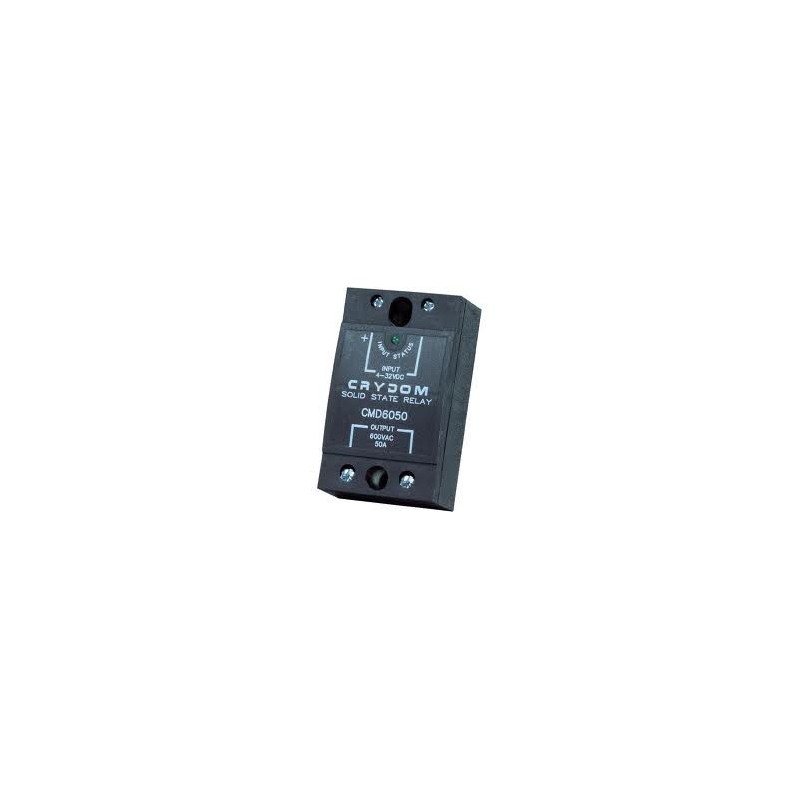

50A SPST N/O 600Vac Power 4~32Vdc Control

Reference CMD6050

Brand Crydom

Zero Cross Fire Back to Back SCR Design
Maximum I²T Fusing Is 1620A²Seconds
Line Voltage 48 ~ 660Vac
Ambient Operating Temperature -40°F ~ 176°F
Thermal Resistance 0.63°F C/W
Internal Voltage Snubber

$257.89

Quantity

In stock: 1 Item

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description

Burst-Firing (Zero Cross Fire) Turns Power ON and OFF During The AC Cycle At Zero Potential. This Type Of Relay Should Be Protected With Semiconductor Fuses. On A High Fault Short These Type Of Fuses Open In Tenths Of a Millisecond . The Fuse Should Be Sized 125% Of The Current Load Of The Relay. The I²T Rating Of The Fuse Must Be Below The Maximum I²T Rating Of The Relay.

NOTE: (I²T) Rated Current Squared Multiplied by Time (Seconds)

Crydom CMD6050

Product Details

Reference CMD6050

In stock 1 Item

Attachments

Download

Crydom CM Relay Literature

Download (2.61KB)
