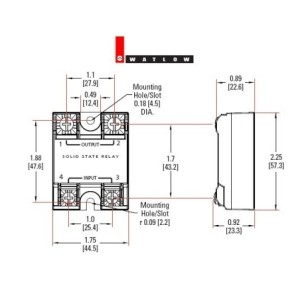

  • SSR HOCKEY PUCK DIMENSIONS

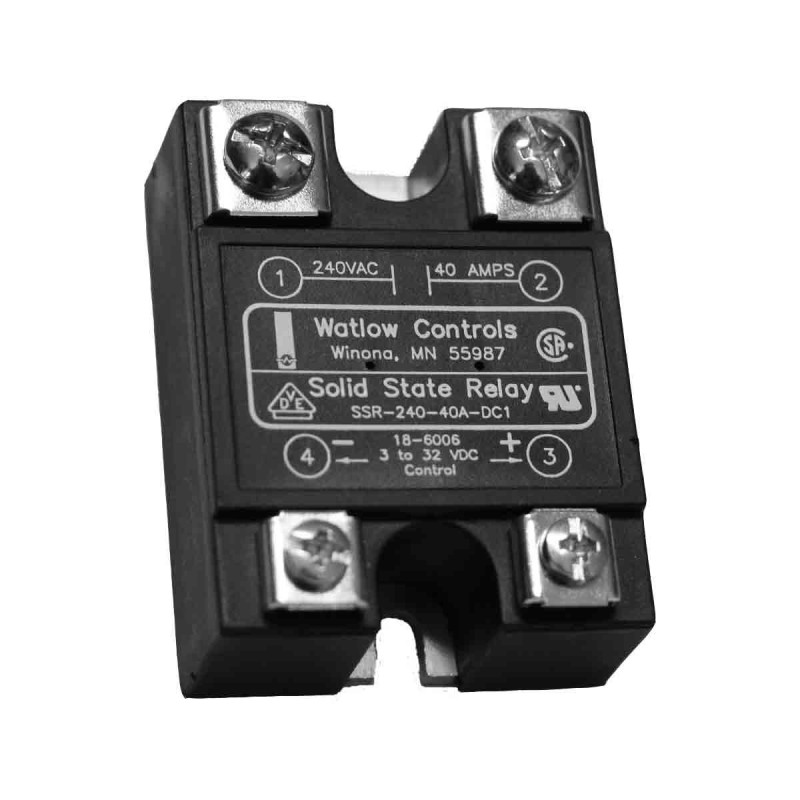

40A SPST N/O 240Vac Power 3~32Vdc Control

SSR-240-40A-DC1
  • Zero Cross Fire Back to Back SCR Design
  • Hocky Puck Style
  • Maximum I²T Fusing Is 1620A²Seconds
  • Line Voltage 24~240Vac
  • Ambient Operating Temperature -40°F ~ 176°F
  • Thermal Resistance .63°F C/W
  • Internal Voltage Snubber
  • Includes Thermal Foil, Washers, And Screws For Mounting To A Heat Sink
  • Equal to Crydom D2440DEH and Potter & Brumfield SSRT-240D40







$88.61
Quantity
Last items in stock
3 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Solid state relays should last for many years if properly protected. Watlow solid state relays include an internal voltage snubber for protection from fast transient voltages. SSRs require a small voltage to switch their load. The heat generated by the relay's switching action can accumulate depending on the cycle time and reduce the life of the relay.  This heat should be removed by mounting the SSR on an appropriately sized heat sink.  The relay should also be protected with Semiconductor Fuses which can open in tenths of a millisecond during a high fault short.  The fuse amp rating should be 125% of the relay’s load current.

Product Details
SSR-240-40A-DC1
0
3 Items
