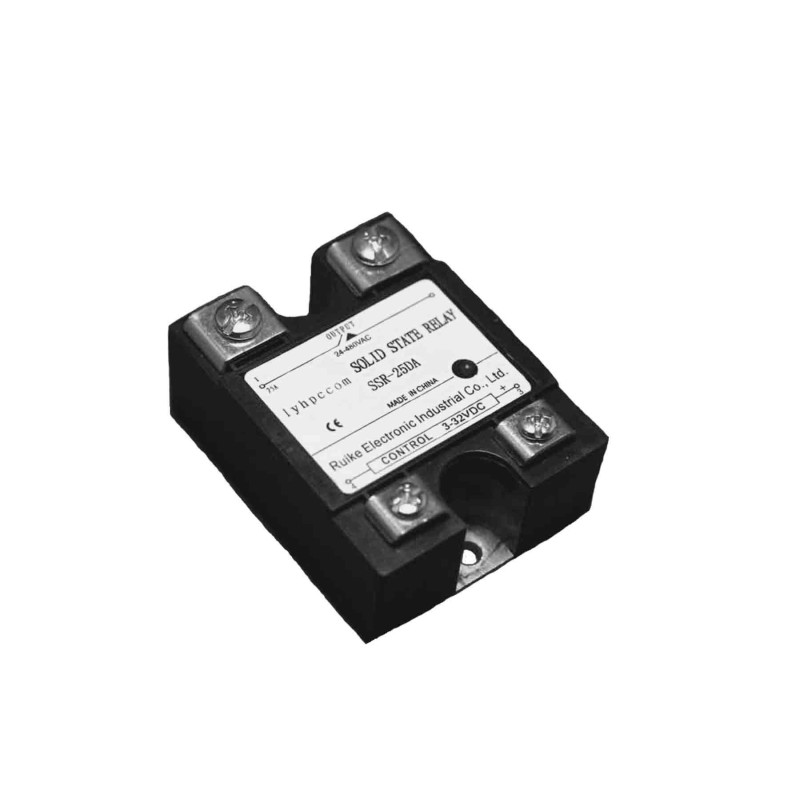

25A SPST N/O 480Vac Power 3~32Vdc Control

Reference SSR-25DA

Brand Ruike Electronic Industrial Co., LTD

Zero Cross Fire Back to Back SCR Design
Hocky Puck Style
Maximum I²T Fusing Is 960A²Seconds
Line Voltage 24 ~ 480Vac
Ambient Operating Temperature -40°F ~ 176°F
Thermal Resistance 0.63°F C/W

$39.68

Quantity

In stock: 8 Items

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description
Product Details

Description

Burst-Firing (Zero Cross Fire) Turns Power ON and OFF During The AC Cycle At Zero Potential. This Type Of Relay Should Be Protected With Semiconductor Fuses. On A High Fault Short These Type Of Fuses Open In Tenths Of a Millisecond . The Fuse Should Be Sized 125% Of The Current Load Of The Relay. The I²T Rating Of The Fuse Must Be Below The Maximum I²T Rating Of The Relay.

NOTE: (I²T) Rated Current Squared Multiplied by Time (Seconds)

Made in China by: Ruike Electronic Industrial Co., LTD.

Product Details

Reference SSR-25DA

In stock 8 Items
