2-1/2"NPT Screw Plug Immersion Heaters, 7.5kw 17-5/8" length

Reference: BLR717L3S

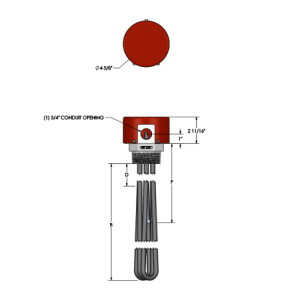

BLR717L3S screw plug immersion heater

Comes wired 240v 3-phase delta in a general purpose wiring enclosure It has (3) 316-ss passivated 17.6250-inch immersed length heating elements with epoxy resin end seals rated at 194ºF and provide up to 7.5kw Also included is an integral thermowell for a sensor (sensor not included) The heater has no heat the first 4.125-inches from the 2-1/2-inch NPT...

$2,116.00

Last items in stock

Reference: BLR717L5S

Brand: Watlow Electric Mfg.

BLR717L5S screw plug immersion heater

Comes wired 480v 3-phase delta in a general purpose wiring enclosure It has (3) 316-ss passivated 17.625-inch immersed length heating elements with expoxy resin end seals rated at 194ºF and provide up to 7.5kw Also included is an integral thermowell for a sensor (sensor not included) The heater has no heat the first 4.125-inches from the 2-1/2-inch NPT...

$2,116.00

Last items in stock

Reference: BLR717L3C

Brand: Watlow Electric Mfg.

BLR717L3C screw plug immersion heater

Comes wired 240v 3-phase delta in an explosion proof wiring enclosure It has (3) 316-ss passivated 17.6250-inch immersed length heating elements with epoxy resin end seals rated at 194ºF and provide up to 7.5kw Also included is an integral thermowell for a sensor (sensor not included) The heater has no heat the first 4.125-inches from the 2-1/2-inch NPT...

$2,389.00

Last items in stock

Reference: BLR717L5C

Brand: Watlow Electric Mfg.

BLR717L5C screw plug immersion heater

Comes wired 480v 3-phase delta in an explosion proof wiring enclosure It has (3) 316-ss passivated 17.625-inch immersed length heating elements with expoxy resin end seals rated at 194ºF and provide up to 7.5kw Also included is an integral thermowell for a sensor (sensor not included) The heater has no heat the first 4.125-inches from the 2-1/2-inch NPT...

$2,389.00

Last items in stock

Reference: BLR717L3S4

Brand: Watlow Electric Mfg.

BLR717L3S4 screw plug immersion heater

Comes wired 240v 3-phase delta in a general purpose wiring enclosure It has (3) 316-ss passivated 17.625-inch immersed length heating elements with expoxy resin end seals rated at 194ºF and provide up to 7.5kw Also included is an integral thermowell for a sensor (sensor not included) and a 30A DPST thermostat control from 30ºF to 110ºF with a 12º...

$2,574.00

Last items in stock

Reference: BLR717L3C4

Brand: Watlow Electric Mfg.

BLR717L3C4 screw plug immersion heater

Comes wired 240v 3-phase delta in an explosion proof wiring enclosure It has (3) 316-ss passivated 17.625-inch immersed length heating elements with epoxy resin end seals rated at 194ºF and provide up to 7.5kw Also included is an integral thermowell for a sensor (sensor not included) and a 30A DPST thermostat control from 30ºF to 110ºF with a 12º...

$3,214.00

Last items in stock

Reference: BLR717L3S5A

Brand: Watlow Electric Mfg.

BLR717L3S5A screw plug immersion heater

Comes wired 240v 3-phase delta in a general purpose wiring enclosure It has (3) 316-ss passivated 17.625-inch immersed length heating elements with expoxy resin end seals rated at 194ºF and provide up to 7.5kw Also included is an integral thermowell for a sensor (sensor not included) and a 30A DPST thermostat control from 60ºF to 250ºF with a 12º...

$2,574.00

Last items in stock

Reference: BLR717L3C5A

Brand: Watlow Electric Mfg.

BLR717L3C5A screw plug immersion heater

Comes wired 240v 3-phase delta in an explosion proof wiring enclosure It has (3) 316-ss passivated 17.625-inch immersed length heating elements with expoxy resin end seals rated at 194ºF and provide up to 7.5kw Also included is an integral thermowell for a sensor (sensor not included) and a 30A DPST thermostat control from 60ºF to 250ºF with a 12º...

$3,214.00

Last items in stock

Reference: BLR717L3S7A

Brand: Watlow Electric Mfg.

BLR717L3S7A screw plug immersion heater

Comes wired 240v 3-phase delta in a general purpose wiring enclosure It has (3) 316-ss passivated 17.625-inch immersed length heating elements with expoxy resin end seals rated at 194ºF and provide up to 7.5kw Also included is an integral thermowell for a sensor (sensor not included) and a 30A DPST thermostat control from 100ºF to 550ºF with a 22º...

$2,574.00

Last items in stock

Reference: BLR717L3C7A

Brand: Watlow Electric Mfg.

BLR717L3C7A screw plug immersion heater

Comes wired 240v 3-phase delta in an explosion proof wiring enclosure It has (3) 316-ss passivated 17.625-inch immersed length heating elements with expoxy resin end seals rated at 194ºF and provide up to 7.5kw Also included is an integral thermowell for a sensor (sensor not included) and a 30A DPST thermostat control from 100ºF to 550ºF with a 22º...

$3,214.00

Last items in stock

Reference: BLR717L5S4

Brand: Watlow Electric Mfg.

BLR717L5S4 screw plug immersion heater

Comes wired 480v 3-phase delta in a general purpose wiring enclosure It has (3) 316-ss passivated 17.625-inch immersed length heating elements with epoxy resin end seals rated at 194ºF and provide up to 7.5kw Also included is an integral thermowell for a sensor (sensor not included) and a 30A DPST thermostat control from 30ºF to 110ºF with a 12º...

$2,574.00

Last items in stock

Reference: BLR717L5C4

Brand: Watlow Electric Mfg.

BLR717L5C4 screw plug immersion heater

Comes wired 480v 3-phase delta in an explosion proof wiring enclosure It has (3) 316-ss passivated 17.625-inch immersed length heating elements with epoxy resin end seals rated at 194ºF and provide up to 7.5kw Also included is an integral thermowell for a sensor (sensor not included) and a 30A DPST thermostat control from 30ºF to 110ºF with a 12º...

$3,214.00

Last items in stock
