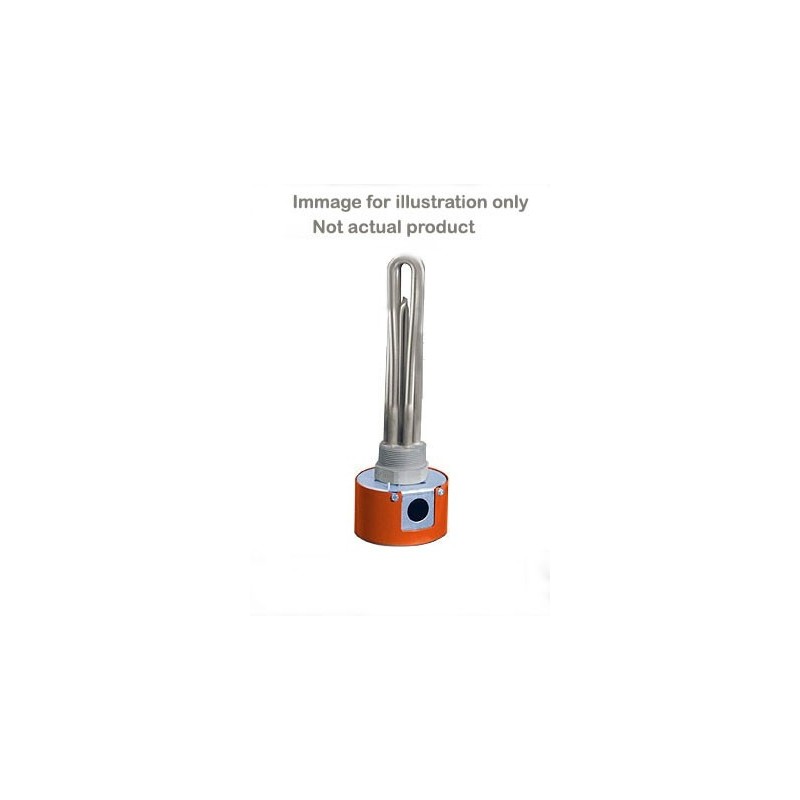

BLR710L5S4 screw plug immersion heater

Reference BLR710L5S4

Brand Watlow Electric Mfg.

Comes wired 480v 3-phase delta in a general purpose wiring enclosure
It has (3) 316-ss passivated 10.625-inch immersed length heating elements
with epoxy resin end seals rated at 194ºF with an integral thermowell
and a DPST 30A thermostat control from 30°F to 110°F with a differential up to 12°
The heater has no heat 2.625-inches from the 2-1/2-inch screw plug
The approximate shipping weight is 10/lbs.

$2,512.00

Quantity

Last items in stock

In stock: 3 Items

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description
Product Details

Description

2-1/2"NPT Screw Plug Immersion Heater | BLR710L5S4

Applications that require heating Deionized/Demineralized Water

Steam boilers and cooling systems
Manufacturing lead-acid batteries
Car washes
Electronics manufacturing
Medical and Pharmaceutical manufacturing
Cleaning processes
Manufacturing cosmetics and personal care products

Features & Benefits of the Watlow® immersion heater

The integral thermowell provides a convenient method for temperature sensor insertion and allowing a replacement without draining the fluid being heated. The CSA approved general purpose enclosure can be rotated to simplify connecting to existing conduits. The WATROD™ hairpin bend is re-compacted to maintain the mineral insulation density and maintain the dielectric strength and heat transfer efficiency. The heating elements have a bright annealing passivation for corrosion resistance and the screw plug is 316SS.

Product Details

Reference BLR710L5S4

In stock 3 Items

Data sheet

Thermostat:30°: 110°F range with up to 12° differential:0
