MB6N1JP7
  • MB6N1JP7
  • Watlow expandable heater band

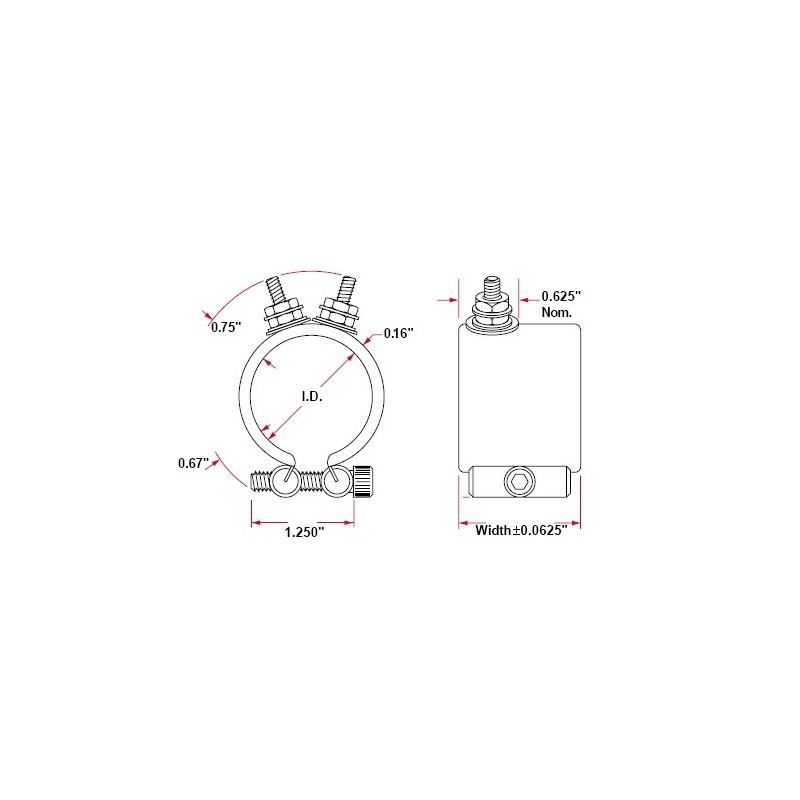

9-7/16"id 4"w Expandable Band Heater 4000w 240/480v

ME9H4AP1
  • 2-PC in one expandable Stainless Steel Sheath
  • Mineral Insulated Band Heater
  • 4000w 480v (37w² Inch) input 240v per piece
  • Two sets of parallel 10-24 thread post terminals located opposite from gap
  • Built In Mounting Clamp Bars with 1/4-20 bolts
  • Similar to DME CMN00090
  • Similar to Cincinnati Milacron 5033194

SHIPS 15-DAYS after order entry

$305.67
Quantity
Out-of-Stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Expandable heaters are two-piece units with a common outer stainless steel metal sheath allowing the heater to expand open to the full diameter of the barrel. They are designed to be opened only once during installation.

  • Each half of expandable bands equals half of total band wattage
  • The sheath is folded inward of the band to prevent contamination by any overflow of plastic or other free flowing materials.
  • These heaters utilize Watlow's exclusive mineral insulation
  • Watlow utilizes a dual insulation method that offers a much higher thermal conductivity than mica and ceramic heaters
  • These high performance heaters provide an almost instant response to temperature control
  • Fast response helps eliminate thermal lag and temperature overshoot

Watlow® is a registered trademark of Watlow Electric Manufacturing
