1-3/4" ID 2"W Nozzle Heater 750w 240v
  • 1-3/4" ID 2"W Nozzle Heater 750w 240v
  • 1-3/4" ID 2"W Nozzle Heater 750w 240v
  • 1-3/4" ID 2"W Nozzle Heater 750w 240v
  • 1-3/4" ID 2"W Nozzle Heater 750w 240v

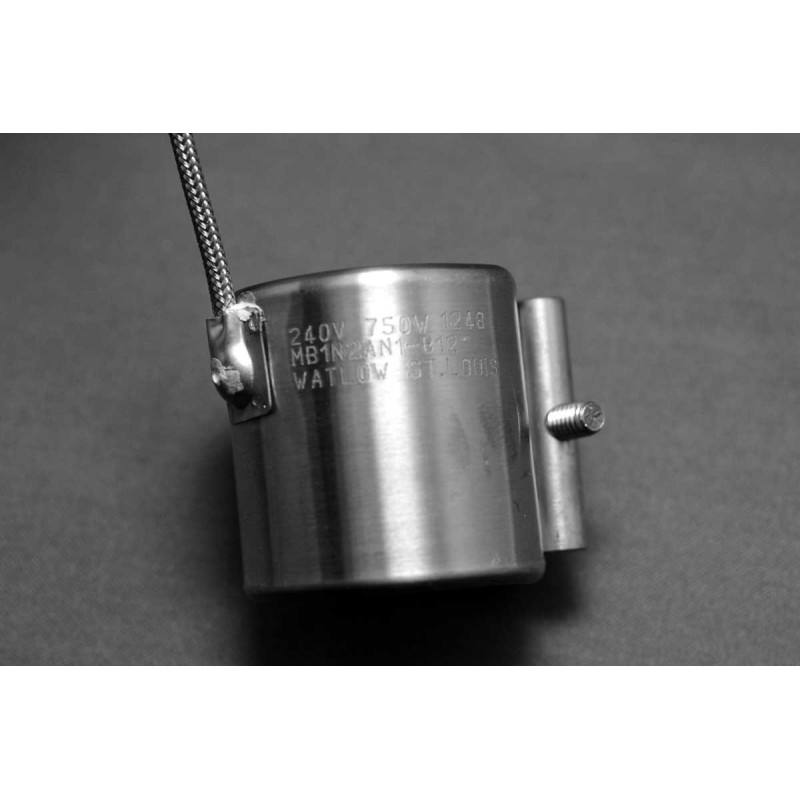

1-3/4" ID 2"W Nozzle Heater 750w 240v

MB1N2AN1-B12
  • 1-PC Mineral Insulated Band Heater
  • 750w 240v (86w² Inch)
  • 12" Fiberglass Insulated Leads
  • 10" Stainless Steel Tight Braid Over Leads
  • Built In Mounting Clamp Bars
  • Stainless Steel Sheath
$163.70
Quantity
5 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The mineral insulated (MI) band heater from Watlow®  is a high-performance heater that incorporates Watlow’s exclusive mineral insulation. This material offers much higher thermal conductivity than mica and hard ceramic insulators that are used in conventional heaters.  A thin layer of high thermal conductive MI material electrically insulates the element wire from the inside diameter of the heater sheath. A thicker, low thermal conductivity layer backs up the element wire directing the heat inward toward the part being heated. The result is efficient heat transfer, which lowers element wire temperatures and increases heater life.

The sheath is made of Stainless Steel and is folded inward of the band which resists contamination by overflow of plastic or other free flowing materials.

The built in clamp bars eliminate cumbersome clamping straps.

Watlow® is a registered trademark of Watlow Electric Manufacturing

Product Details
MB1N2AN1-B12
0
5 Items
4 other products in the same category:
MB6N1JP7 MB6N1JP7

Reference: ME08B4AP-3001

Brand: Watlow Electric Mfg.

8-1/16"id 4"w Expandable Band Heater 2650w 240/480v

2-PC in one expandable Stainless Steel Sheath Mineral Insulated Band Heater 2650w 480v (35w² Inch) input 240v per piece Two sets of parallel 10-24 thread post terminals located opposite from gap Built In Mounting Clamp Bars with 1/4-20 bolts Similar to DME CMN00094 Similar to Cincinnati Milacron 5035117 New Watlow ME08B4AP-3001 part number SHIPS 15-DAYS...
$298.20
More 8-1/16"id 4"w Expandable Band Heater 2650w 240/480v
In stock
MB5J1JP1 MB5J1JP1

Reference: ME5J1JP1

Brand: Watlow Electric Mfg.

5-1/2" ID 1-1/2"W Band Heater 1000w 240/480v

2-PC in one expandable Stainless Steel Sheath Mineral Insulated Band Heater 1000w 480v (40w² Inch) input 240v per piece Two sets of parallel 10-24 thread post terminals located opposite from gap Built In Mounting Clamp Bars with 1/4-20 bolts Ships 20-days after order entry
$163.95
More 5-1/2" ID 1-1/2"W Band Heater 1000w 240/480v
Last items in stock
Out-of-Stock 1-1/2" ID 1-1/2"W NOZZLE HEATER 1-1/2" ID 1-1/2"W NOZZLE HEATER

Reference: MB1J1JN2-B12

Brand: Watlow Electric Mfg.

1-1/2" ID 1-1/2"W Nozzle Heater 450w 240v

1-PC Mineral Insulated Band Heater 450w 240v (87w² Inch) 12" Fiberglass Insulated Leads 10" Stainless Steel Tight Braid Over Leads Built In Mounting Clamp Bars Stainless Steel Sheath Similar to DME MI1515B2A Similar to Tempco MPP52903 Similar to Chromalox MT-01515-0427
$202.28
More 1-1/2" ID 1-1/2"W Nozzle Heater 450w 240v
Out-of-Stock
MB6N1JP7 MB6N1JP7

Reference: ME7J1JP5

Brand: Watlow Electric Mfg.

7-1/2"id 1-1/2"w Expandable Band Heater 900w 240/480v

2-PC in one expandable Stainless Steel Sheath Mineral Insulated Band Heater 900w 480v (30w² Inch) input 240v per piece Two sets of parallel 10-24 thread post terminals located opposite from gap Built In Mounting Clamp Bars with 1/4-20 bolts Similar to DME CMN00035 Similar to Cincinnati Milacron 326332 SHIPS 15-DAYS after order entry
$168.99
More 7-1/2"id 1-1/2"w Expandable Band Heater 900w 240/480v
Last items in stock
