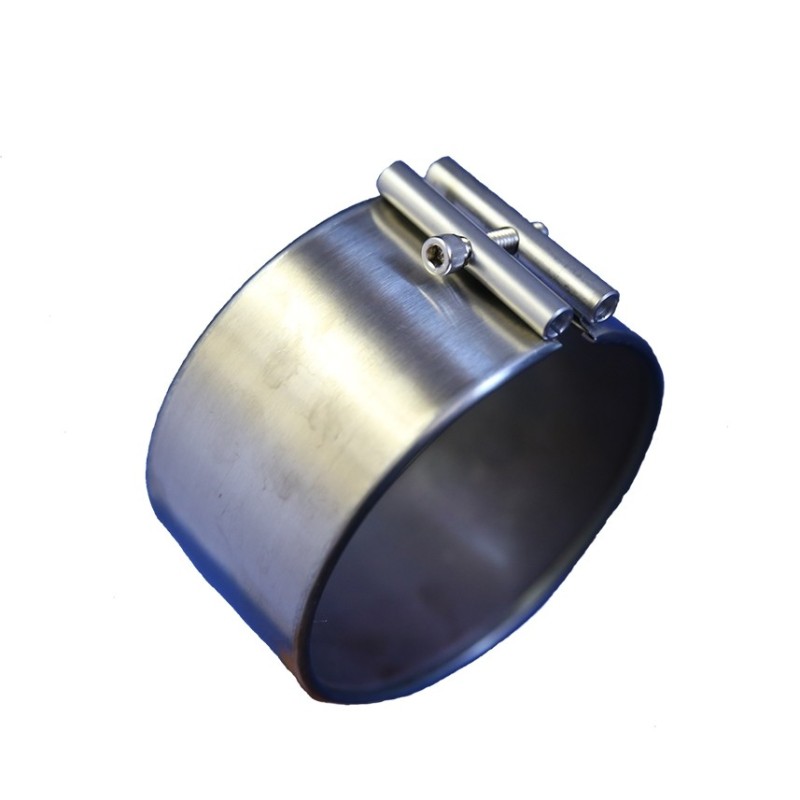

5-1/4" ID 3"W Expandable Band Heater 1700w 230/460v

Reference ME5E3AP5

Brand Watlow Electric Mfg.

2-PC in one expandable Stainless Steel Sheath
Mineral Insulated Band Heater
1700w 460v (40w² Inch) input 230v per piece
Two sets of parallel 10-24 thread post terminals located opposite from gap
Built In Mounting Clamp Bars with 1/4-20 bolts
Similar to DME MI5230P2
Similar to Tempco MPP00187
Similar to Chromalox MT-05230-0860

$230.63

Quantity

Last items in stock

In stock: 3 Items

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description

Expandable heaters are two-piece units with a common outer stainless steel metal sheath allowing the heater to expand open to the full diameter of the barrel. They are designed to be opened only once during installation.

Each half of expandable bands equals half of total band wattage
The sheath is folded inward of the band to prevent contamination by any overflow of plastic or other free flowing materials.
These heaters utilize Watlow's exclusive mineral insulation
Watlow utilizes a dual insulation method that offers a much higher thermal conductivity than mica and ceramic heaters
These high performance heaters provide an almost instant response to temperature control
Fast response helps eliminate thermal lag and temperature overshoot

Watlow® is a registered trademark of Watlow Electric Manufacturing

Product Details

Reference ME5E3AP5

EAN13 0

In stock 3 Items

Attachments

Download

Watlow MI Bands

Download (2.61KB)
