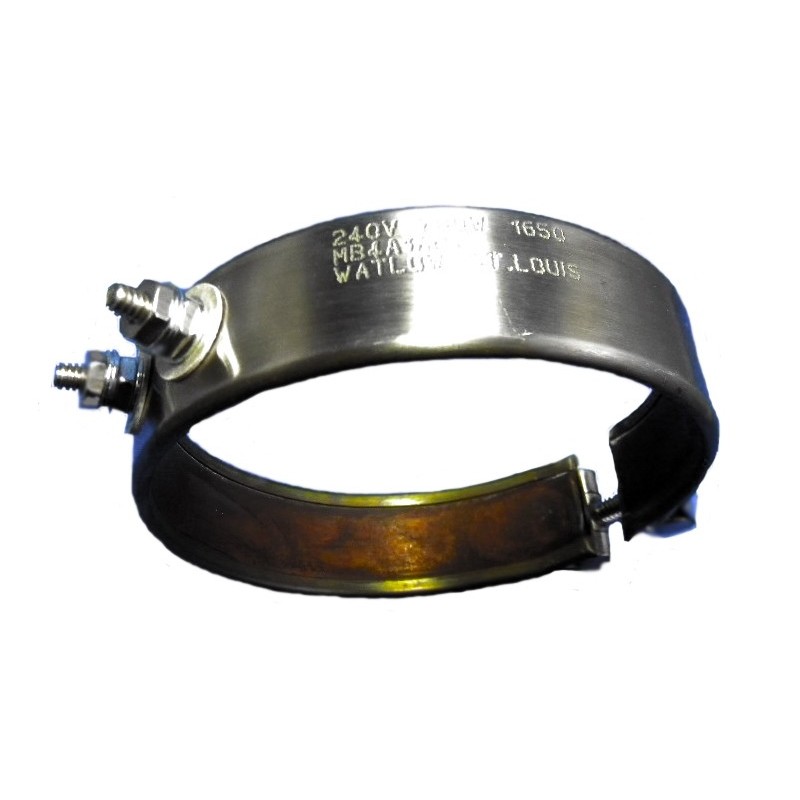

4" ID 1"W Nozzle Heater 700w 240v

Reference MB4A1AP1

Brand Watlow Electric Mfg.

1-PC Mineral Insulated Band Heater
700w 240 (62w² Inch)
Parallel post terminals opposite from gap
Built In Mounting Clamp Bars
Stainless Steel Sheath

$124.15

Quantity

Last items in stock

In stock: 1 Item

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description

The mineral insulated (MI) band heater from Watlow® is a high-performance heater that incorporates Watlow’s exclusive mineral insulation. This material offers much higher thermal conductivity than mica and hard ceramic insulators that are used in conventional heaters. A thin layer of high thermal conductive MI material electrically insulates the element wire from the inside diameter of the heater sheath. A thicker, low thermal conductivity layer backs up the element wire directing the heat inward toward the part being heated. The result is efficient heat transfer, which lowers element wire temperatures and increases heater life.

The sheath is made of Stainless Steel and is folded inward of the band which resists contamination by overflow of plastic or other free flowing materials.

The built in clamp bars eliminate cumbersome clamping straps.

Watlow® is a registered trademark of Watlow Electric Manufacturing

Product Details

Reference MB4A1AP1

EAN13 0

In stock 1 Item

Attachments

Download

Watlow MI Bands

Download (2.61KB)
