1" ID 1-1/2"W NOZZLE HEATER
  • 1" ID 1-1/2"W NOZZLE HEATER
  • 1" ID 1-1/2"W NOZZLE HEATER
  • 1" ID 1-1/2"W NOZZLE HEATER
  • MI NOZZLE DRAWING

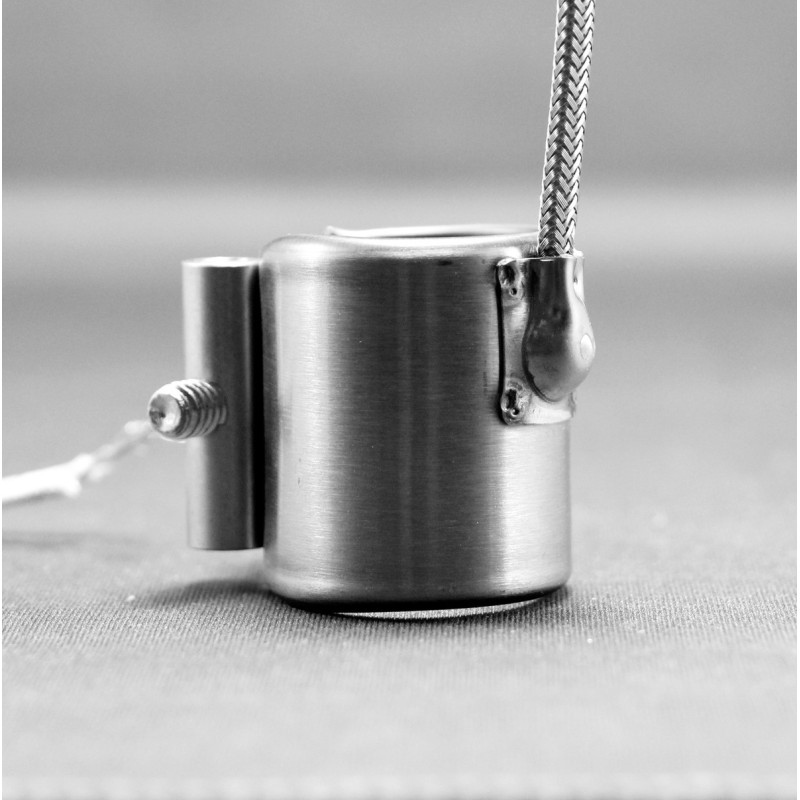

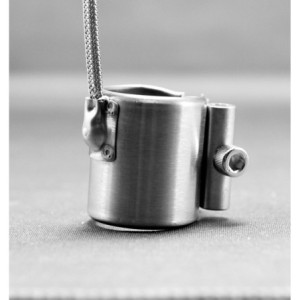

1" ID 1-1/2"W Nozzle Heater 300w 120v

MB1A1JN2-B12
  • 1-PC Mineral Insulated Band Heater
  • 300w 120v (106w² Inch)
  • 12" Fiberglass Insulated Leads
  • 10" Stainless Steel Tight Braid Over Leads
  • Built In Mounting Clamp Bars
  • Stainless Steel Sheath
  • Similar to Chromalox MT-01015-0837
$134.90
Quantity
Last items in stock
1 Item

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The mineral insulated (MI) band heater from Watlow®  is a high-performance heater that incorporates Watlow’s exclusive mineral insulation. This material offers much higher thermal conductivity than mica and hard ceramic insulators that are used in conventional heaters.  A thin layer of high thermal conductive MI material electrically insulates the element wire from the inside diameter of the heater sheath. A thicker, low thermal conductivity layer backs up the element wire directing the heat inward toward the part being heated. The result is efficient heat transfer, which lowers element wire temperatures and increases heater life.

The sheath is made of Stainless Steel and is folded inward of the band which resists contamination by overflow of plastic or other free flowing materials.

The built in clamp bars eliminate cumbersome clamping straps.

Watlow® is a registered trademark of Watlow Electric Manufacturing

Product Details
MB1A1JN2-B12
0
1 Item
4 other products in the same category:
MB5J1JP1 MB5J1JP1

Reference: ME5J1JP1

Brand: Watlow Electric Mfg.

5-1/2" ID 1-1/2"W Band Heater 1000w 240/480v

2-PC in one expandable Stainless Steel Sheath Mineral Insulated Band Heater 1000w 480v (40w² Inch) input 240v per piece Two sets of parallel 10-24 thread post terminals located opposite from gap Built In Mounting Clamp Bars with 1/4-20 bolts Ships 20-days after order entry
$163.95
More 5-1/2" ID 1-1/2"W Band Heater 1000w 240/480v
Last items in stock
2" ID 2"W Nozzle Heater 750w 240v 2" ID 2"W Nozzle Heater 750w 240v

Reference: MB2A2AN1-B12

Brand: Watlow Electric Mfg.

2" ID 2"W Nozzle Heater 750w 240v

1-PC Mineral Insulated Band Heater 750w 240v (75w² Inch) 12" Fiberglass Insulated Leads 10" Stainless Steel Tight Braid Over Leads Built In Mounting Clamp Bars Stainless Steel Sheath Similar to DME MI2020B2 Similar to Tempco MPP55101 Similar to Chromalox MT-02020-0175
$209.93
More 2" ID 2"W Nozzle Heater 750w 240v
In stock

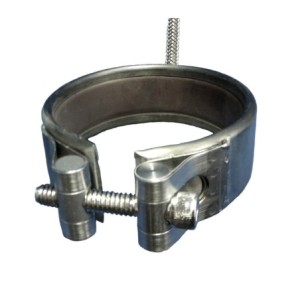

MB2J1JN1-B12 MB2J1JN1-B12
