PM6C1CJ-ALEJAAA 1/16-DIN 4-Outputs 2-Inputs
  • PM6C1CJ-ALEJAAA 1/16-DIN 4-Outputs 2-Inputs

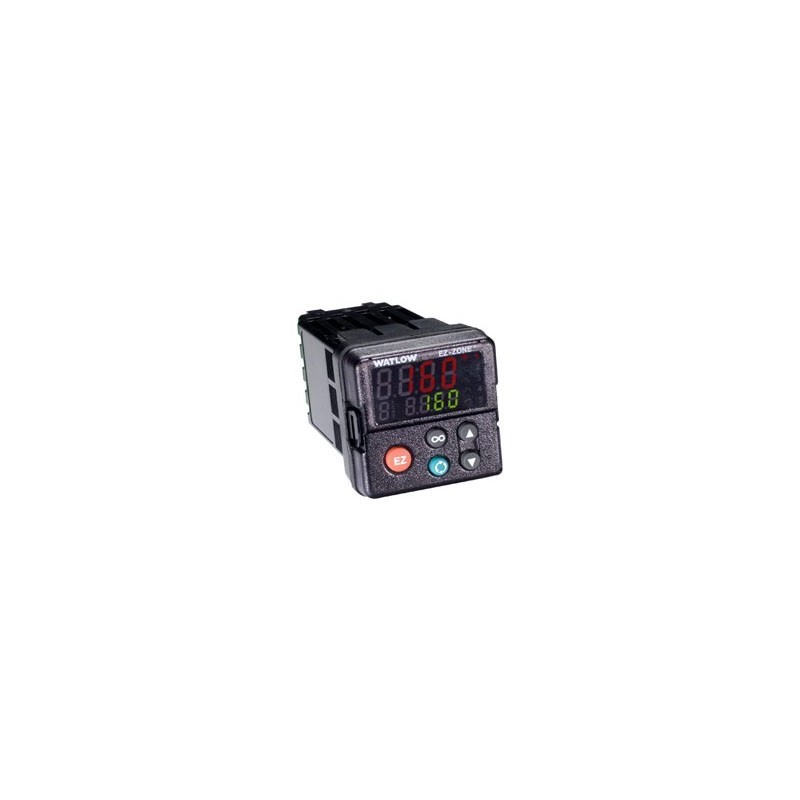

  • PM6C1CJ-ALEJAAA Front View

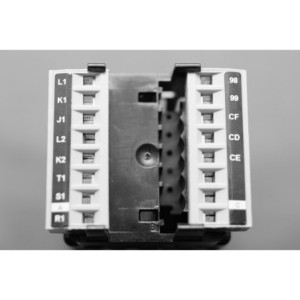

  • PM6C1CJ-ALEJAAA Rear View

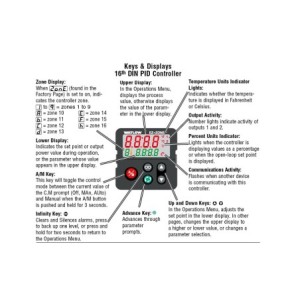

  • PM6C1CJ-ALEJAAA Enhanced Menu Options

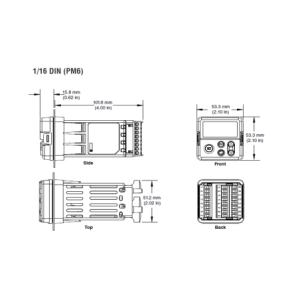

  • PM6C1CJ-ALEJAAA Dimensions

PM6C1CJ-ALEJAAA 1/16-DIN 4-Outputs 2-Inputs

PM6C1CJ-ALEJAAA
  • Two Universal Inputs
  • PID Controller with Universal Input
  • Output #1 (C) - Switched DC/Open Collector
  • Output #2 (J) - Mechanical Relay 5A, SPST-NO
  • Output #3 (E) - Mechanical Relay 5A, SPDT
  • Output #4 (J) - Mechanical Relay 5A, SPST-NO
  • Operating Voltage 100 ~ 240VAC
  • Auto Tune PID Control
  • High/Low Limit Control
$566.00
Quantity
4 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

WATLOW EZ-ZONE® PM6C1CJ-ALEJAAA

  • This unit can control a compressor, motor, pressure, valve, humidity, as well as thermal processes.
  • The serial communications when used with the free WATLOW software, saves time of controller setup.
  • Also available in 20 ~ 28VAC or 12 ~ 40VDC Model PM6C3CJ-ALEJAAA

  • These units now come with Bluetooth® (B), replacing the serial communications (A) at no additional charge - PM6C1CJ-BLEJAAA
  • Watlow's new version of the EZ-ZONE® is the PLUS® model - PM6C1CJ-BLEJPWP
  • Available with a basic simplified menu for thermal processes - PM6C1CJ-BLEJHWP

Universal Input

  • This can be a thermocouple grounded or ungrounded
  • It can be an RTD 2-wire or 3-wire
  • It can be 0-20mA or 0-50mV

Universal Process Output

The universal process is range selectable between 0-10VDC or 4-20mA.

The differences between (Form A) & (Form C)

Form A - single pole, single throw (SPST).
Form C - double pole, double throw (DPDT).

Review the above tabs for Data Sheets, FAQ's & Attachments for more specifics and operator's manual.
