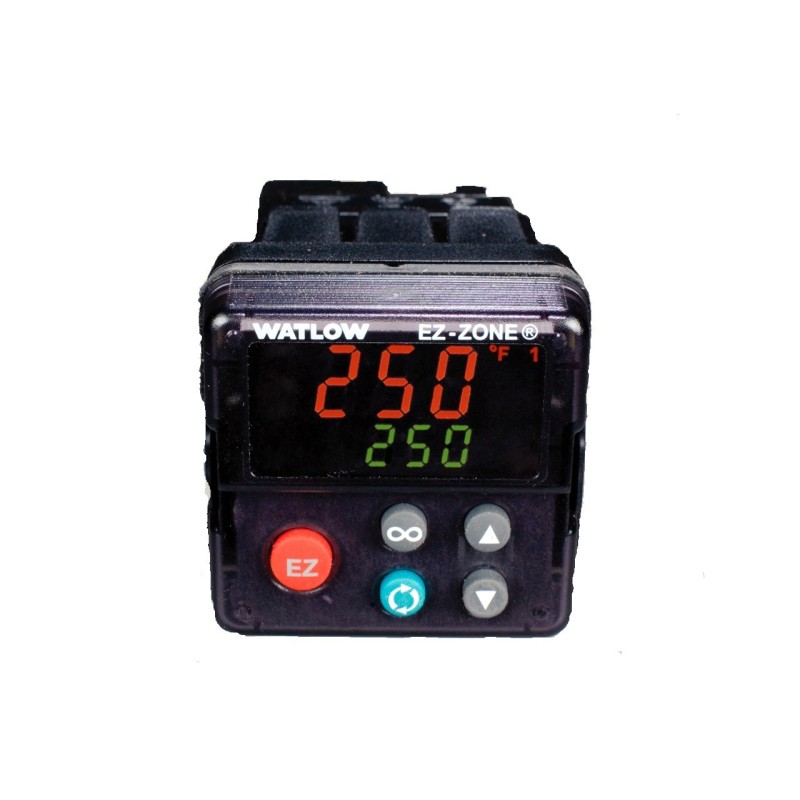

  • PM6C1EJ-AAAABAA Front View
  • PM6C1EJ-AAAABAA Rear View
  • PM6C1EJ-AAAABAA

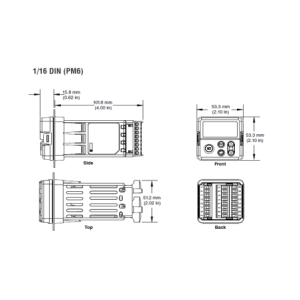

  • PM6C1EJ-AAAABAA Dimensions

PM6C1EJ-AAAABAA 1/16-DIN 2-Outputs

PM6C1EJ-AAAABAA
  • One Universal Input
  • Output #1 (E) - Mechanical Relay 5A, Form C
  • Output #2 (J) - Mechanical Relay 5A, Form A
  • Operating Voltage 100 ~ 240VAC
  • Auto-Tune PID Controller
  • PM Express Set-Up Menu
  • For Basic Heating/Cooling Applications
$439.00
Quantity
Last items in stock
1 Item

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

WATLOW EZ-ZONE® PM6C1EJ-AAAABAA

  • This unit can control a compressor, motor, pressure, valve, humidity, as well as thermal processes.
  • The serial communications when used with the free WATLOW software, saves time of controller setup.
  • Also available in 20 ~ 28VAC or 12 ~ 40VDC Model PM6C3EJ-AAAABAA

Updated EZ-ZONE® Features

  • These units now come with Bluetooth® (B), replacing the serial communications (A) at no additional charge - PM6C1EJ-BAAABAA
  • Watlow's new version of the EZ-ZONE® EXPRESS is the LEGACY® model - PM6C1EJ-BAAAHWP
  • Available with a more extensive menu EZ-ZONE® PLUS® thermal process - PM6C1EJ-BAAAPWP

Universal Input

  • This can be a thermocouple grounded or ungrounded
  • It can be an RTD 2-wire or 3-wire
  • It can be 0-20mA or 0-50mV

Universal Process Output

The universal process is range selectable between 0-10VDC or 4-20mA.

The differences between (Form A) & (Form C)

Form A - single pole, single throw (SPST).
Form C - double pole, double throw (DPDT).

Direct replacement for Watlow Series 93 & Series 96

This unit replaces obsolete models: 93AA-1DD0-00AA, 93AA-1DD0-00AB, 93AA-1DD0-00AC, 93AA-1DD0-00AD, 93AA-1DD0-00GG, 93AA-1DD0-00GR, 93AA-1DD0-00RG, 93AA-1DD0-00RR, 93AB-1DD0-00AA, 93AB-1DD0-00AB, 93AB-1DD0-00AC, 93AB-1DD0-00AD, 93AB-1DD0-00GG, 93AB-1DD0-00GR, 93AB-1DD0-00RG, 93AB-1DD0-00RR, 93BA-1DD0-00AA, 93BA-1DD0-00AB, 93BA-1DD0-00AC, 93BA-1DD0-00AD, 93BA-1DD0-00GG, 93BA-1DD0-00GR, 93BA-1DD0-00RG, 93BA-1DD0-00RR, 93BB-1DD0-00AA, 93BB-1DD0-00AB, 93BB-1DD0-00AC, 93BB-1DD0-00AD, 93BB-1DD0-00GG, 93BB-1DD0-00GR, 93BB-1DD0-00RG, 93BB-1DD0-00RR, 965A-1DD0-0000, 965A-1DD0-00AM, 965A-2DD0-0000, 965A-2DD0-00AM, 965A-3DD0-0000, 965A-3DD0-00AM, 965A-3DD0-00BH, 965A-3DD0-00BR, 965A-3DD0-00EL, 965A-3DD0-00GG, 965A-3DD0-00GR, 965A-3DD0-00RG, 965A-3DD0-0200, 965A-3DD0-02AM, 965A-3DD0-02BH, 965A-3DD0-02BR, 965A-3DD0-02EL, 965A-3DD0-02GG, 965A-3DD0-02GR, 965A-3DD0-02RG, 965A-3DD0-0300, 965A-3DD0-03AM, 965A-3DD0-03BH, 965A-3DD0-03BR, 965A-3DD0-03EL, 965A-3DD0-03GG, 965A-3DD0-03GR, 965A-3DD0-03RG, 965A-3DD0-0400, 965A-3DD0-04AM, 965A-3DD0-04BH, 965A-3DD0-04BR, 965A-3DD0-04EL, 965A-3DD0-04GG, 965A-3DD0-04GR, 965A-3DD0-04RG

Review the above tabs for Data Sheets, FAQ's & Attachments for more specifics and operator's manual.
